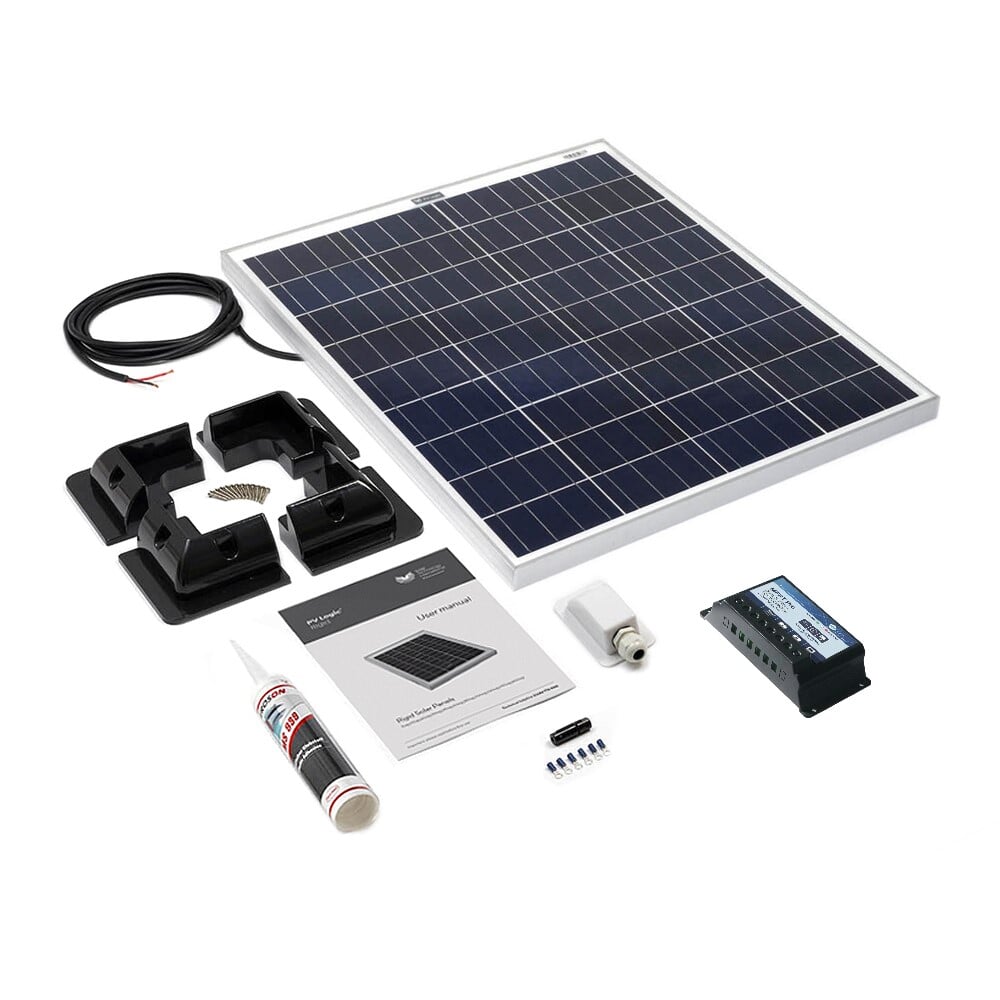

Solar Technology 80W Rigid Solar Panel ABS Mounts & 15A MPPT

• Power: 80W
• Size: 836 x 670 x 35mm
• Weight: 6.7Kg
• Amp hours per day: 27.9A
• Charge controller: Includes 15A Dual Battery MPPT Charge Controller
• Vmp: 17.5V
• Voc: 22V
• Isc: 3.97A
• Includes ABS Corner Mounts

Developed to meet higher energy demands, the 80W rigid solar panel is suitable for powering higher power consumption devices including 12V TVs and 240V appliances (when used with an inverter). It also provides a continuous trickle feed maintain and extending the life of any 12V battery. The six layer construction of each panel, delivers performance and strength.

The panel includes bypass diodes to minimise the effect of shadows and is supplied with all a 5m cable, connectors and detailed installation instructions for permanent fitting. This panel can be installed using standard aluminium, premium PVU or aero aluminium brackets.

PV Logic rigid solar panels have a 10-year frame integrity warranty and a 20-year cell warranty (cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e. the cell degradation rate will be no greater than 20% in 20 years).

Includes ABS Corner Mounts

The mounts can be safely bonded to the surface of motor homes / boats removing the need to drill holes.

Includes 15A Dual Battery MPPT Charge Controller

The PV Logic MPPT Pro charge controller has been designed to deliver the highest possible power from any 12v or 24v solar panel into a 12v or 24v battery.

The MPPT Pro provides protection for a battery against overcharging for any solar panel or solar array up to 225w and is either an excellent choice for new installations or as an upgrade to an existing solar systems. Whether for leisure (caravan, motorhome, boat), industrial or solar off grid systems the MPPT Pro will more than pay back its cost through the extra power it delivers.

• Reverse current protection.
• Unique dual battery charging function.
• Efficient MPPT charging, increases battery lifetime and improves solar system performance upto 20%.
• 12/24V automatic recognition.
• Overload protection
• Open circuit protection
• Lightning surge protection
• Deep discharge protection
• Charge current protection up to 15A
• Bluetooth with Apple and Android apps available
• Optional Display unit available
