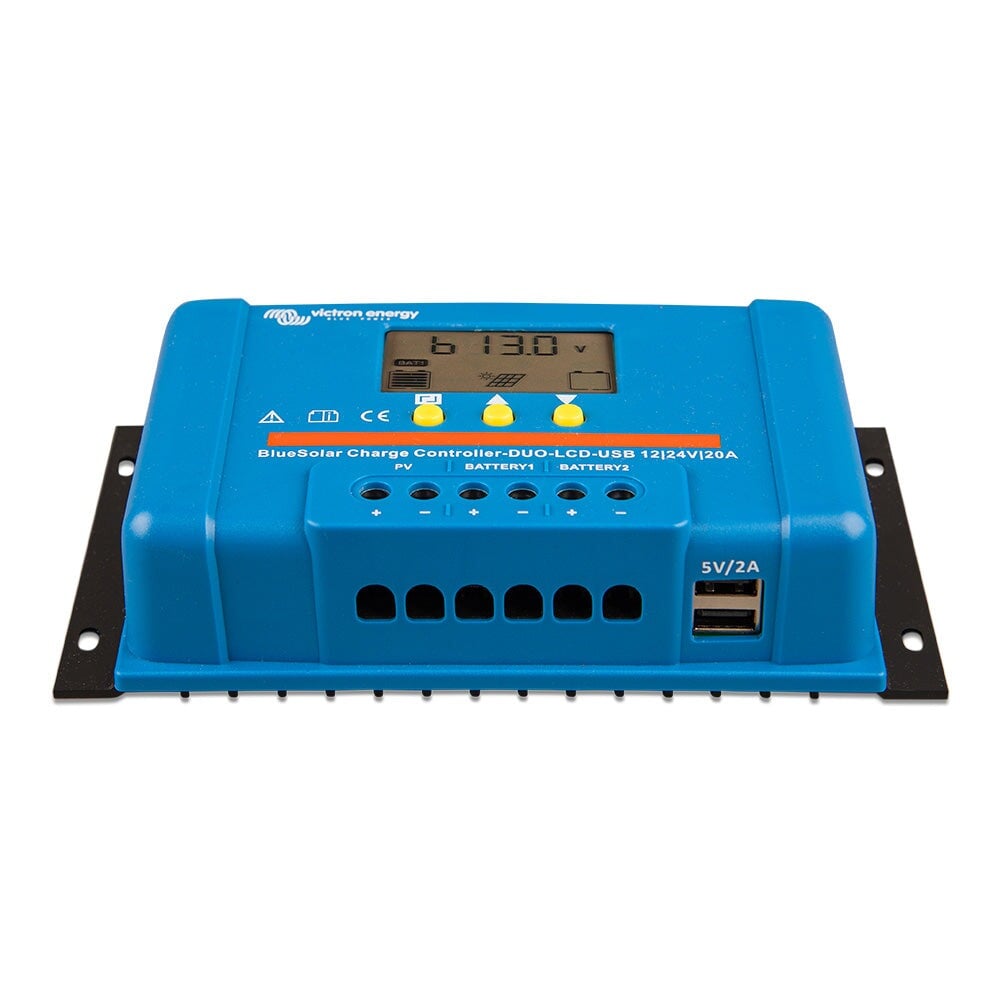

Victron BlueSolar Charge Controller PWM DUO LCD/USB 12/24V-20A
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
MPN
SCC010020060
RRP £64.80
£57.96
£48.30
The BlueSolar PWM DUO 12V|24V|20A LCD-USB series uses Pulse Width Modulation (PWM) charge voltage control combined with a multistage charge control algorithm. This leads to superior charging and enhanced battery performance. The filtered PWM power control system uses highly efficient and reliable power MOSFET transistors.
- Voltage: 12/24V
- Rated Charge Current: 20A
- Protection Category: IP20
- Bluetooth Enabled: No
- Dimensions: 101.5 x 184.0 x 47.1mm
- Weight: 0.3Kg
- Warranty: 5 Years
The BlueSolar PWM DUO 12V|24V|20A LCD-USB series uses Pulse Width Modulation (PWM) charge voltage control combined with a multistage charge control algorithm. This leads to superior charging and enhanced battery performance. The filtered PWM power control system uses highly efficient and reliable power MOSFET transistors.
Features
- Liquid Crystal Display
- Two 5 Volt USB outputs
- Lighting control function fully programmable
- Three stage battery charging (bulk absorption float) fully programmable
- Load output with low voltage and manual disconnect (programmable)
- Load output protected against over load and short circuit
- Protected against reverse polarity connection of the solar panels and/or battery
- Charges two separate batteries
- Programmable charge current ratio
- External Temperature sensor
