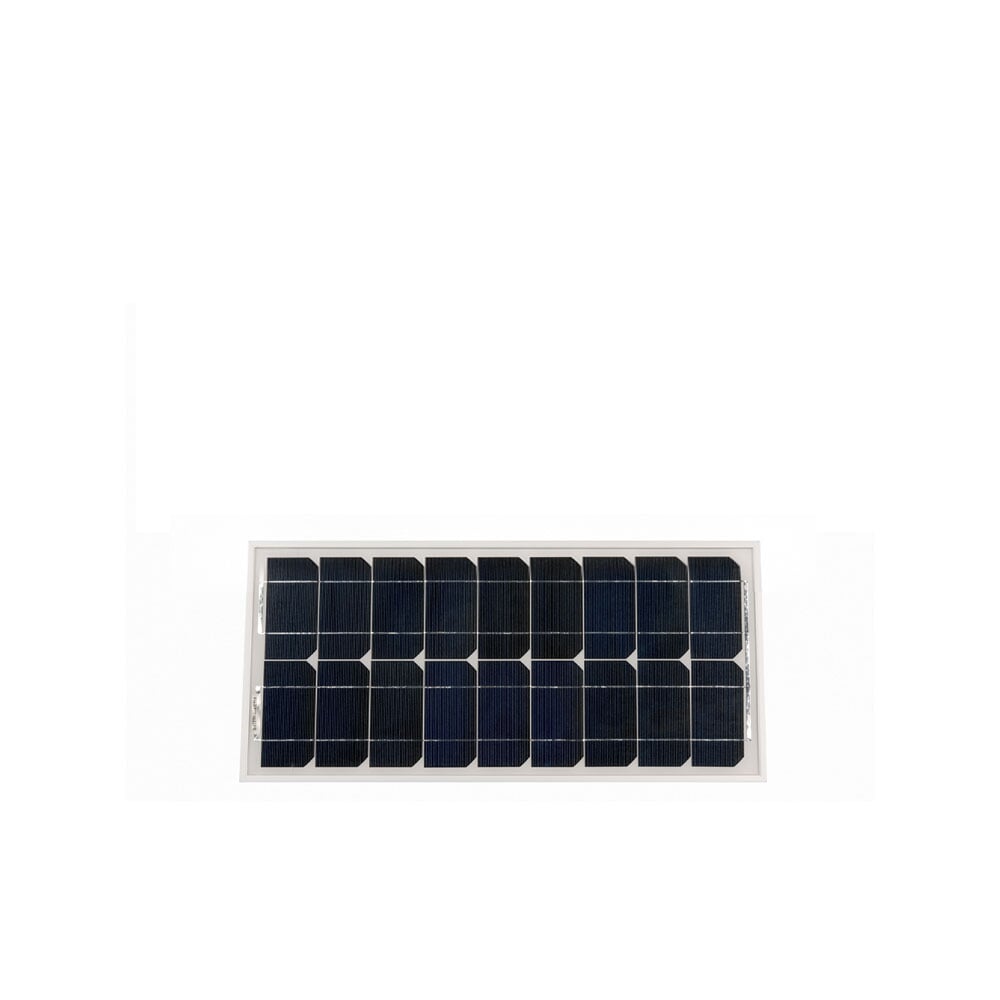

Victron BlueSolar Monocrystalline 12V Solar Panel - 20W
Estimated Delivery 7 - 14 days
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation. A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems. Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
- Power: 20W
- Size: 440 x 350 x 25mm
- Weight: 1.9Kg
- Vmp (VDC): 18.5
- Imp (A): 1.09
- Voc (V): 22.6
- Isc (A): 1.19
Low voltage-temperature coefficient enhances high-temperature operation. Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
25-Year limited warranty on power output and performance. 5-Year limited warranty on materials and workmanship.
Sealed waterproof multi-functional junction box gives high level of safety. High performance bypass diodes minimize the power drop caused by shade. Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
A sturdy anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems. Highest quality high-transmission tempered glass provides enhanced stiffness and impact resistance. High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors
-
-
