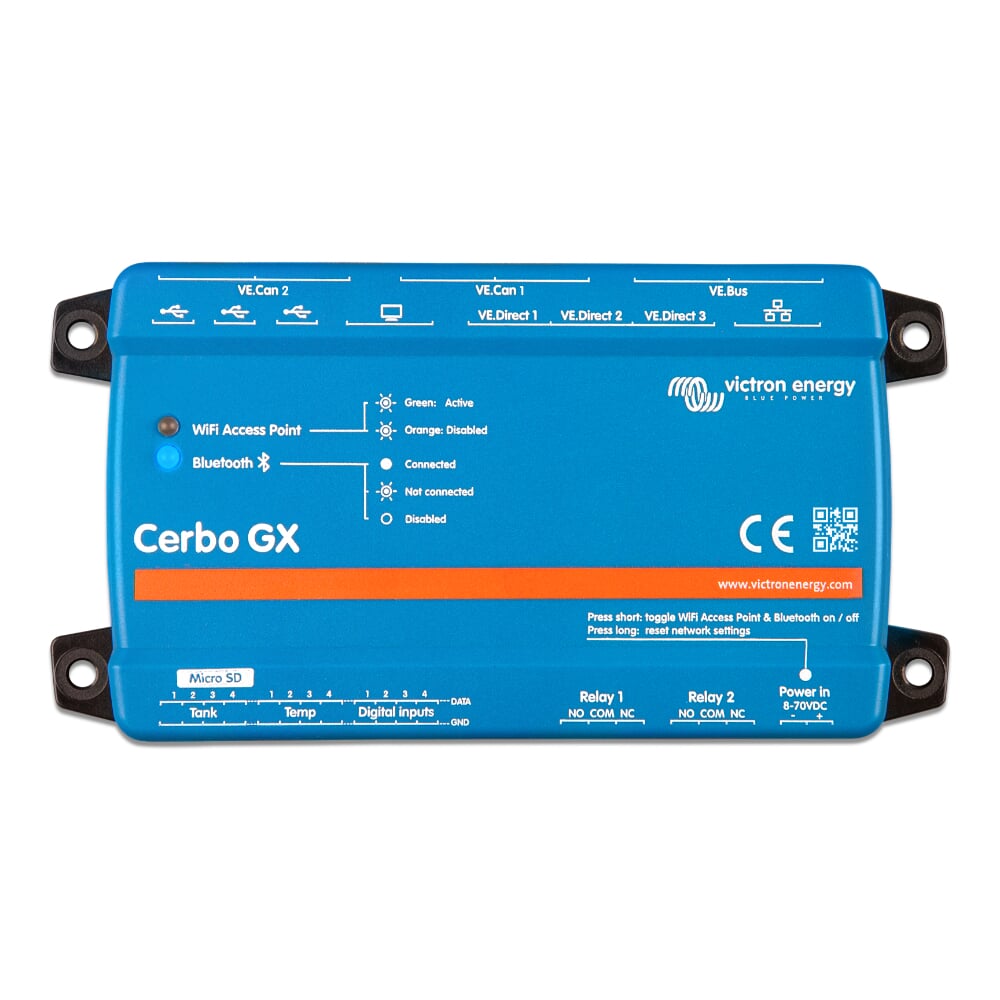

Victron Cerbo GX MKII Controller

• Two fully functional canbus ports, called VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port.
• VE.Can 1 is isolated. On previous models, there was no isolated canbus port.
• RJ-45 sockets have been rotated 180 degrees, so its easier to take the cables out.
• All three USB ports are fully functional. Instead of two functional and one for power (to a GX Touch) only.
• Digital inputs can do pulse counting

This revision is most valuable for some very specific applications. Such as the RV market in the US where a Lynx Smart BMS (VE.Can connection) as well as an RV-C port is required.

This all-new communication centre allows perfect control over the system from anywhere and maximises its performance. Simply connect through Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50, a MFD or VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.

Perfect monitoring & control

Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX turns any power challenge into an effortless experience.

Maximise the system performance

The Cerbo GX maximises the performance of the systems components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port it can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boats network. Four tank- and four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow expansion and control to a new level. Maximising systems performance was never this easy.

Expand the view

The new (optional) GX Touch 50 display gives an instant overview of the system and adjust settings in the blink of an eye. Its super slim 5 inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

Simple mounting and configuration

The Cerbo GX is now optimised to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included) and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via our VictronConnect app.

Outsmart any power challenge

The Cerbo GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Backup & Off-grid, it will auto-start/stop a generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks-in during power-cuts and diverts excess (solar) power to self-consumption, saving money. For RV and Emergency vehicles it keeps vital systems function flawlessly.
