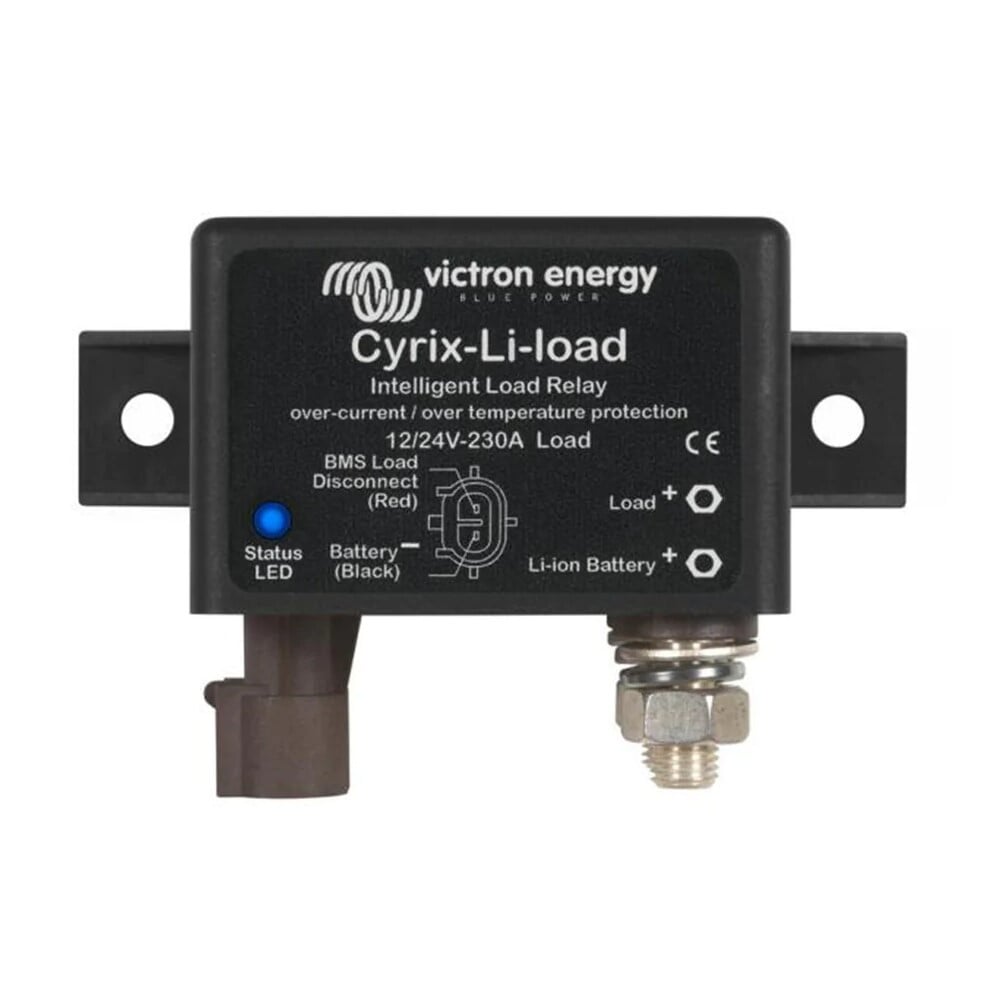

Victron Cyrix-Li-Load 24 / 48V 230A Intelligent Charge Relay
Estimated Delivery 7 - 14 days
The Cyrix-Li-load will disengage when its control input becomes free floating. If the battery voltage recovers after disconnection (which will happen when no other loads are connected to the battery), the output of the BMS will become high and the Cyrix will reengage after 30 seconds. After 3 attempts to reengage, the Cyrix will remain disengaged until battery voltage has increased to more than 13 V (resp. 26 V or 52 V) during at least 30 seconds (which is a sign that the battery is being recharged)
- Voltage: 24/48
- LED Status Indication: Yes
- Continuous current & Breaking capacity at 12V or 24V: 230A
- Current Consumption When Open: 4 mA
- Control Cable Included: Yes 1m
- Protection Category: IP54
- Dimensions: 65 x 100 x 50mm
- Weight: 0.27Kg
- Warranty: 5 Years
The Cyrix-Li-load will disengage when its control input becomes free floating. If the battery voltage recovers after disconnection (which will happen when no other loads are connected to the battery) the output of the BMS will become high and the Cyrix will reengage after 30 seconds. After 3 attempts to reengage the Cyrix will remain disengaged until battery voltage has increased to more than 13 V (resp. 26 V or 52 V) during at least 30 seconds (which is a sign that the battery is being recharged). Alternatively a BatteryProtect can be used (advantage: very low power consumption).
-
