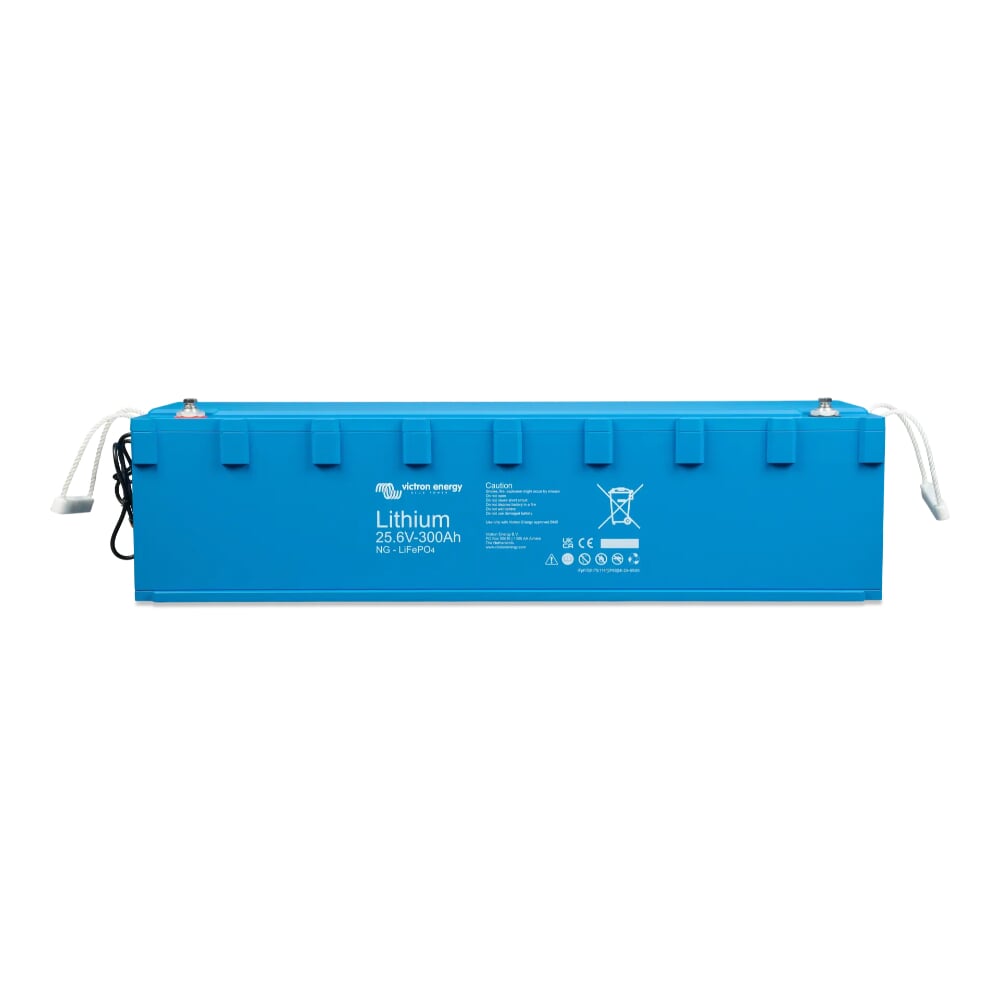

Victron Lithium NG Battery LiFePO4 - 25.6V - 300Ah NG

• Multiple improvements including added read-out of cell voltages and temperatures
• Maximum single bank size increased to 385kWh
• Bracket mounting and strap mounting
• Protection class: IP65
• Nominal Voltage: 25.6V
• Nominal Capacity: 300Ah
• Nominal Energy: 7680Wh
• Power Connection: M8 (Threaded inserts and bolts)
• Dimensions: 206 x 841 x 205mm
• Weight: 52Kg

Building upon the success of Victron's Lithium Smart Series the NG (Next Generation) series incorporates significant enhancements. Victron Energy Lithium NG batteries are Lithium Iron Phosphate ( LiFePO₄ or LFP) batteries available in various capacities with nominal voltages of 12.8 V 25.6V and 51.2V.

Integrated shunt - The battery data (battery voltage current and temperature) are transmitted to the BMS and evaluated there i.e. to calculate the state of charge which can then be read out via VictronConnect or a GX communication centre or to create and issue specific warnings and alarms.

Automatic setup monitoring and control via VictronConnect App or a GX device and the VRM Portal - All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel series and series/parallel connection. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A further models to follow ) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth) a GX communication centre or the VRM Portal. You can view battery parameters such as cell status cell voltages battery current and temperatures in real-time. The battery firmware is automatically updated by the BMS.

Easy bracket mounting - Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating) - The Lithium NG batteries are effectively sealed against dust and can withstand low -pressure water jets making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate - The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance longevity and reliability of the NG batteries.
