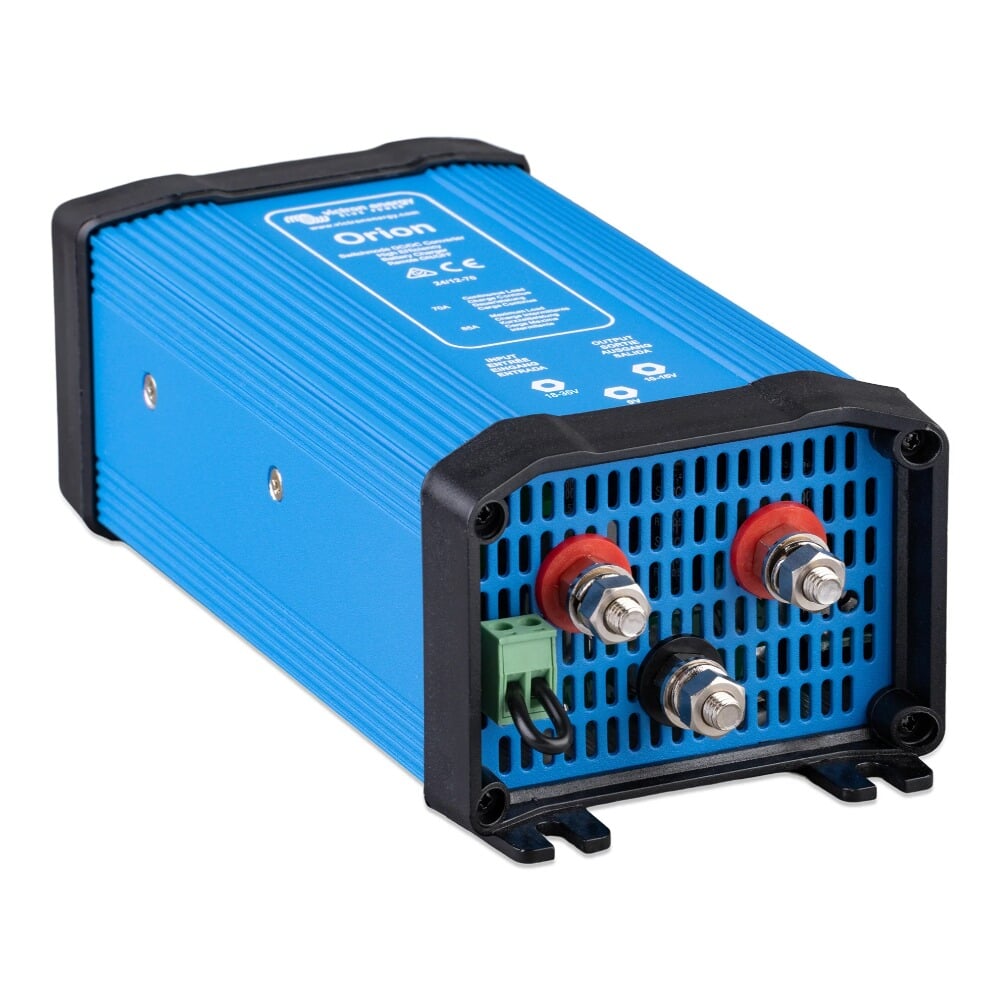

Victron Orion 24/12-80 DC-DC converter IP20
In stock
Ready to dispatch
Ready to dispatch
MPN
ORI241280020
RRP £123.60
£98.31
£81.92
High power non isolated DC-DC Converter with remote on-off.
- Input Voltage range: 18-35V
- Output Voltage: Adjustable 10-15V (F-set 13.2V)
- Efficiency: 92%
- Continuous output current: 80A
- Max Output current: 90A
- Connections: M6 Bolts
- Dimensions: 65 x 88 x 195mm
- Weight: 0.9Kg
Remote on/off connector - The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
Battery Charger - Can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
Prarallel Instalation - Can be paralleled to increase output current. Up to five units can be connected in parallel.
