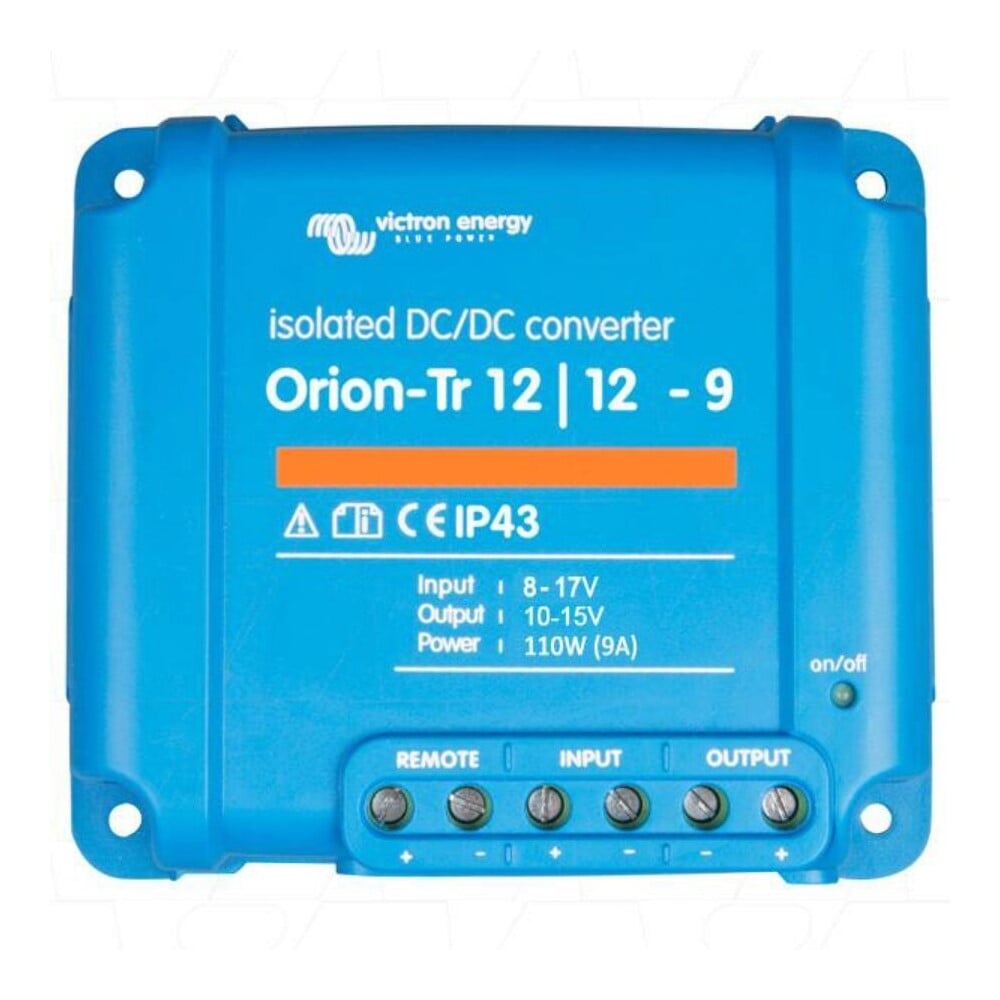

Victron Orion-Tr Isolated DC-DC Converter 12/12-9A (110W)
Ready to dispatch
12V-12V converter ensures a stable 12V output with constant voltage no matter if the battery is charged or discharged.
- Input Voltage Range: 8-17V
- Under Voltage Shutdown: 7V
- Under Voltage Restart: 7.5V
- Nominal Output Voltage: 12.2V
- Output Voltage Adjust Range: 10-15V
- Short Circuit Output Current: 32A
- Cont. Output Power at 25°C: 110W
- DC Connection: Screw Terminals
- Protection Category: IP43
- Dimensions: 100 x 113 x 47mm
- Weight: 0.42Kg
- Warranty: 5 Years
Remote on-off: The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger: For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current: An unlimited number of units can be connected in parallel.
IP43 protection: When installed with the screw terminals oriented downwards.
Screw terminals: No special tools needed for installation.
-
