Zipwake CP PRO - Control Panel Pro

• Fully automatic - Dynamic pitch and roll control - Steering and turn enhancement
• Built-in GPS and motion sensors
• Unique and intuitive 3D controls
• Sunlight readable color display
• Instant state user feedback
• Auto power on/off via ignition key sense
• Auto dimming / night mode
• Upgradable via USB stick
• Supports up to 3 additional Control Panels in the system
• Surface flush or gimbal bracket mount
• Manages installation configurations from 1 to 6 Series E dual-servo interceptors or any mix with single-servo interceptors
• Allows configuration of interceptor pair function

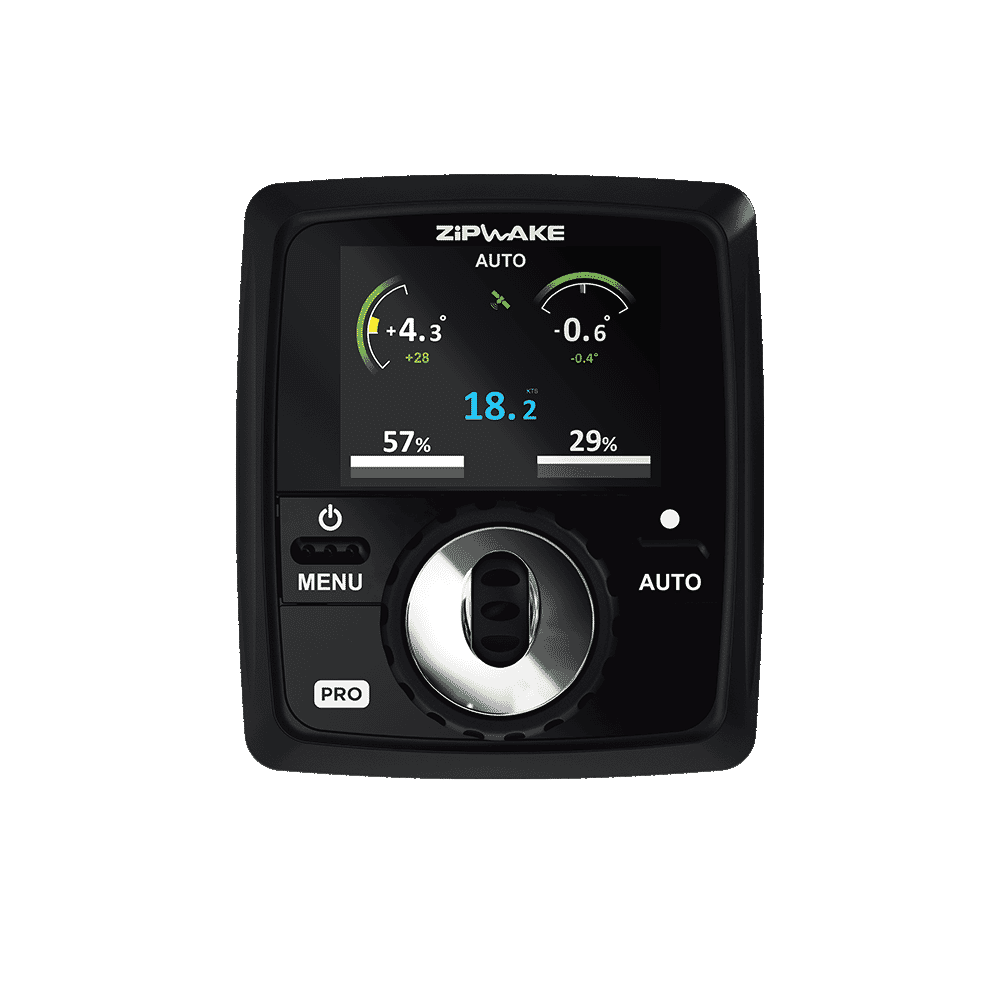

Take full command with the Zipwake Control Panel PRO.

The panel’s two unique control wheels provide easy quick and intuitive manual control of running trim heel or heading. However the system normally operates in automatic control mode which is enabled by a single press on the AUTO button. In this mode the built-in high-frequency GPS 3D gyro sensors and robust motion controller automatically ensure dynamic elimination of un- comfortable and dangerous boat pitch and roll.

Push the AUTO BUTTON – and GO!

The system provides continuous feedback of boat speed turning radius pitch and roll angle as well as the interceptors’ positions on a 2.8” sunlight- readable wide viewing color display.

The panel’s waterproof design withstands harsh marine conditions in open boats or on a flybridge. The sockets for connecting peripherals are located on the rear of the panel. In addition to connectors for the system’s distribution unit and multiple control panels external GPS and NMEA 2000 equipment can be connected. The system can also be connected to the ignition key for automatic system power-on. A waterproof cap conceals the USB interface that allows for future software upgrades and ensures that the Zipwake Dynamic Trim Control System is future-proof.

New Interface

The new interface has been refined and polished to deliver a smoother more intuitive user experience. Designed with the operator in mind it ensures the right information is presented at the right time — clearly and efficiently.

Inputs and Outputs

• I-BUS IN (CAN bus)
• I-BUS OUT (CAN bus)
• NMEA 2000
• Key sense
• USB Device Port (Type A)
• USB Host Port (Type B)
• External GPS (NMEA 0183 / RS232 auto baud-rate sensing)

Specifications

• Display: 2.8’’ IPS color TFT LCD 320 x 240 pixels double-sided anti-reflection coated window
• Internal sensors: 5 Hz GPS 3D Gyro 3D Accelerometer Ambient light
• Supply Voltage: 12 - 32 V DC
• Power Consumption: 10 W max
• Operating Temperature: -20° to +85°C (-4° to +185°F)
• Storage Temperature: -40° to +90°C (-40° to +194°F)
• Waterproof Rating: IP67 / IP64 (front / back)
• Compass Safe distance: 0.5 m (1.7 ft)
• Compliance: CE FCC
• Weight: 0.22 kg (0.49 lbs)
• Mounting: Surface flush or gimbal bracket mount
