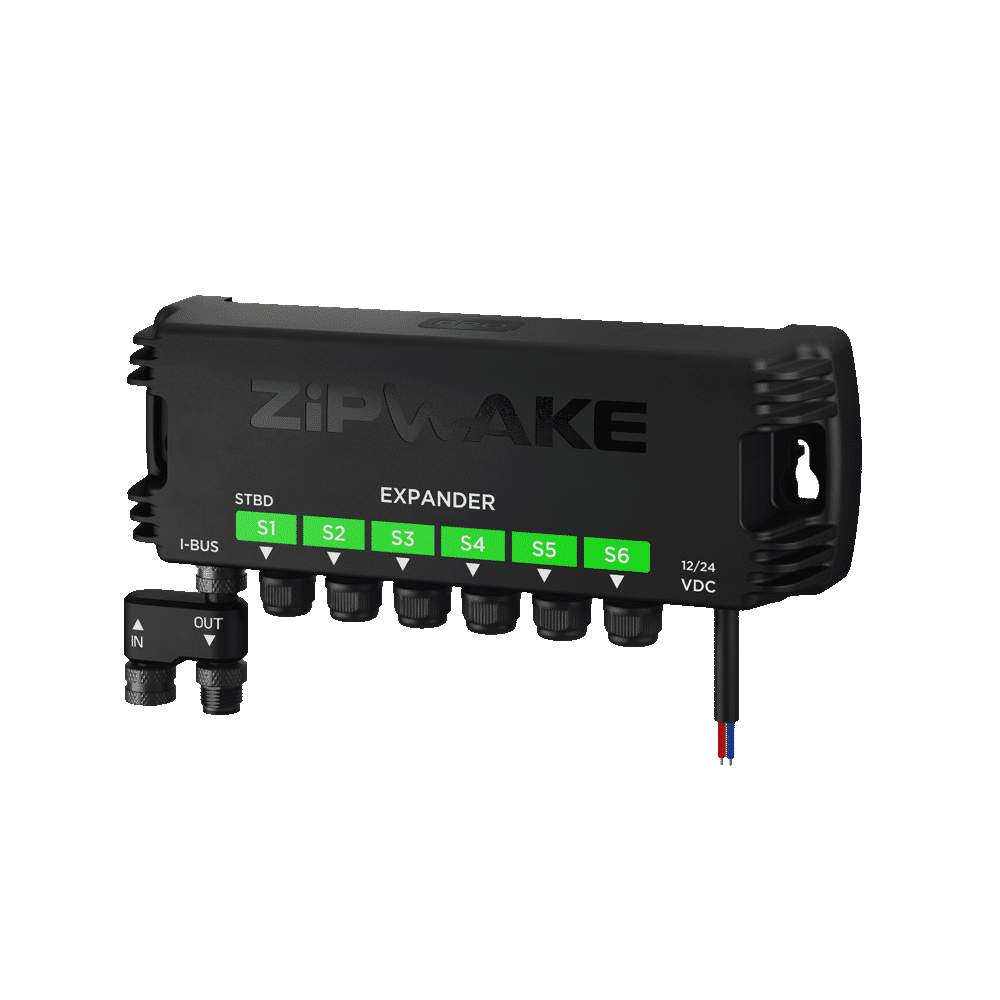

Zipwake DU-EX PRO - Distribution Expansion Unit Pro with 4m Cable

• Six interceptor connections
• I-BUS OUT (power and CAN bus to control panels)
• 2-lead power cable
• Supply Voltage: 12 - 32V
• Power Consumption: 10 W max
• Protection Fuse: Integrated and automatic
• Power Cable Length: Length 4 m (13 ft ft) Diameter 9 mm (0.35 in) 12 AWG
• Operating Temperature: -20° to +85°C (-4° to +185°F)
• Storage Temperature: -40° to +90°C (-40° to +194°F)
• Waterproof Rating: IP67 with cables and/or protective caps mounted
• Oil resistance: Common engine fluids
• Compliance: CE FCC SAE J1171 Ignition Protected
• Weight: 1.1 kg (2.4 lbs) including power cable

The DU-EX PRo is a Distribution expansion unit for the Zipwake DU PRO Disbribution unit. The expansion accomodates up to size series E pro Dual-servo interceptors or any mix with single-servo interceptors. The unit has built-in voltage boost circuitry and supplies the servo units with 36V DC power. The unit is connected to the main control panel or integrator module. It is robust waterproof oil resistant and ignition protected for mounting in an engine room. The power cable is included for easy connection to a battery. The distribution unit has built-in electrical protection including its own automatic circuit breakers.
