Zipwake Series E Dynamic Trim Control Kit - 600E Chine Interceptor
Estimated Delivery 7 - 14 days
Free mainland UK delivery!

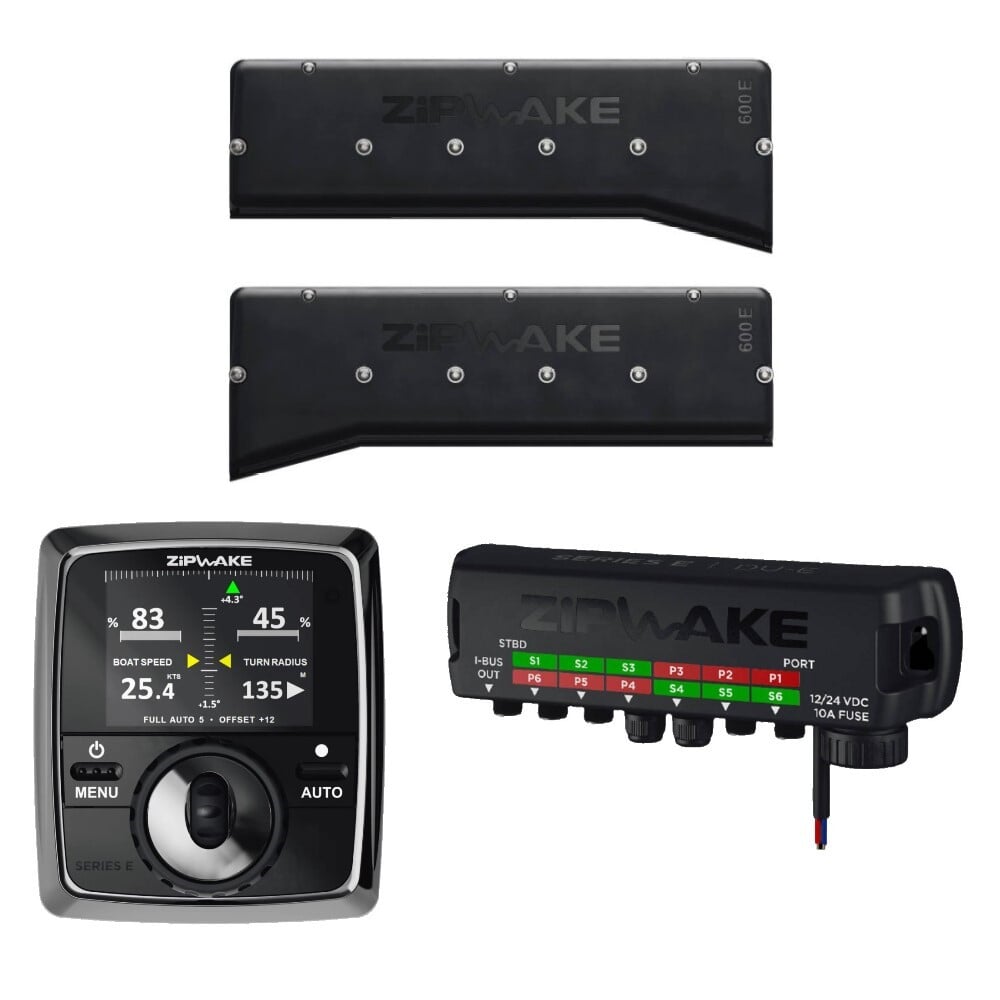

Zipwake Series ES Dynamic Trim Control Kit Comprising:
- Control Panel with 15m Cable
- Distribuition Unit with 6m Cable
- 2 x 600E Chine Interceptors with 3m Cables
- Zipwake is a fully automatic and active trim control system
- Dynamically eliminates uncomfortable and dangerous boat pitch and roll
- Automatically minimizes wave resistance and saves fuel
- For boats up to 100 foot
- 5-10 times faster than conventional trim tabs
- Built-in GPS, 3D-Gyro and 3D- Accelerometer
- 60mm Blade Stroke
Technical Specifications
X| Control Panel | |
|---|---|
| Display | 2.8" Colour TFT, 320 x 240 Pixels |
| Internal Sensors | 5Hz GPS 3D Gyro 3D Accelrometer Ambient Light |
| Supply Voltage | 12 - 32 VDC |
| Power Consumption | 10W Max |
| Operating Temperature | -20°C - 85°C (-4°F - 185°F) |
| Storage Temperature | -40°C - 90°C (-40°F - 194°F) |
| Waterproof Rating | Front: IPX67 Rear: IPX64 |
| Compass Safe Distance | 0.5m (1.7') |
| Compliance | CE, FCC |
| Weight | 0.22Kg (0.49lbs) |
| Mounting | Flush, Surface or Gimbal (with optional gimbal Bracket) |
| 600E Chine Interceptors | |
|---|---|
| Length | 600mm (24") |
| Weight | 7.4Kg (16.3lbs) |
| Max Boat Speed | 50 Knots |
| Blade Stroke | 40mm (1.6") |
| Blade Rate | 40mm/s (1.6"/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Cable Length | 3m (10') Expandable upto 6m (20') |
| Connector | M12 5-Pin Circular |
| Supply Voltage | 12 - 32 VDC |
| Power Consumption | 25W Max |
| Waterproof Rating | IP68 5m (16') |
| Distribution Unit | |
|---|---|
| Supply Voltage | 12 - 32 VDC |
| Power Consumption | 0.1W Max |
| Fuse | 10A ATO |
| Power Cable Length | 6m (19.7') |
| Waterproof Rating | IP67 |
| Oil Resistance | Common engine fluids |
| Weight (including power cable) | 1.1Kg (2.4lbs) |
Amazing Just Got Better
An even faster response time. Even better lift force. A bigger, brighter display. And enhanced performance and comfort. The Dynamic Trim Control System Series E takes fully automatic trim control to another dimension. The system brings together a family of durable, fast-acting interceptors and 3D controls engineered for bigger boats up to 30 m (100 ft) for unmatched command of running trim, heel and heading. The Series E is compatible with Series S interceptors.
Made To Go The Distance
The robust Series E was developed for larger boats and professional use. Designed for long operational hours and tough conditions, the system will deliver reliable performance in all circumstances.
The Complete Package
Each Series E Kit Box comes complete with all the parts and software needed to install a Dynamic Trim Control System, including one pair of large fast-acting interceptors.
Control Panel - The stylish, intuitive Series E control panel puts a smoother, more comfortable ride at the tips of your fingers. Besides fully automatic trim and motion control, it features a larger display panel with brighter colors and better viewing angles.
State Of The Art Interceptors - The Series E product family includes 11 fast-acting interceptors (four straight, three tunnel and four chine). A longer blade stroke (60 mm) and faster blade rate (40 mm/s) deliver even more efficient lift. For boats between 30 m (100 ft).
Distrubuition Unit - Powers up to three Series E dual-servo interceptors. The new Distribution Expansion Unit powers up to six, or any mix with Series S interceptors. Robust, waterproof, oil resistant and ignition protected for mounting in an engine room.
Small Enouth To Fit - Big Enough To Make A Difference
The IT400-E is the smallest interceptor in our Series E product line. Thanks to its long 60 mm blade stroke, the IT 400 E is the ideal choice for boats that have limited transom space but also need excellent lift force, such as large boats with multiple outboard motors or stern-heavy small boats.
How It Works
See how the Zipwake Dynamic Trim Control System automatically eliminates pitch and roll for a safer ride and improved fuel economy.
-
