Zipwake SU-400E PRO - Series E Pro Servo Unit For 400E Interceptors
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
MPN
2022235
£665.68
£554.73
Free mainland UK delivery!

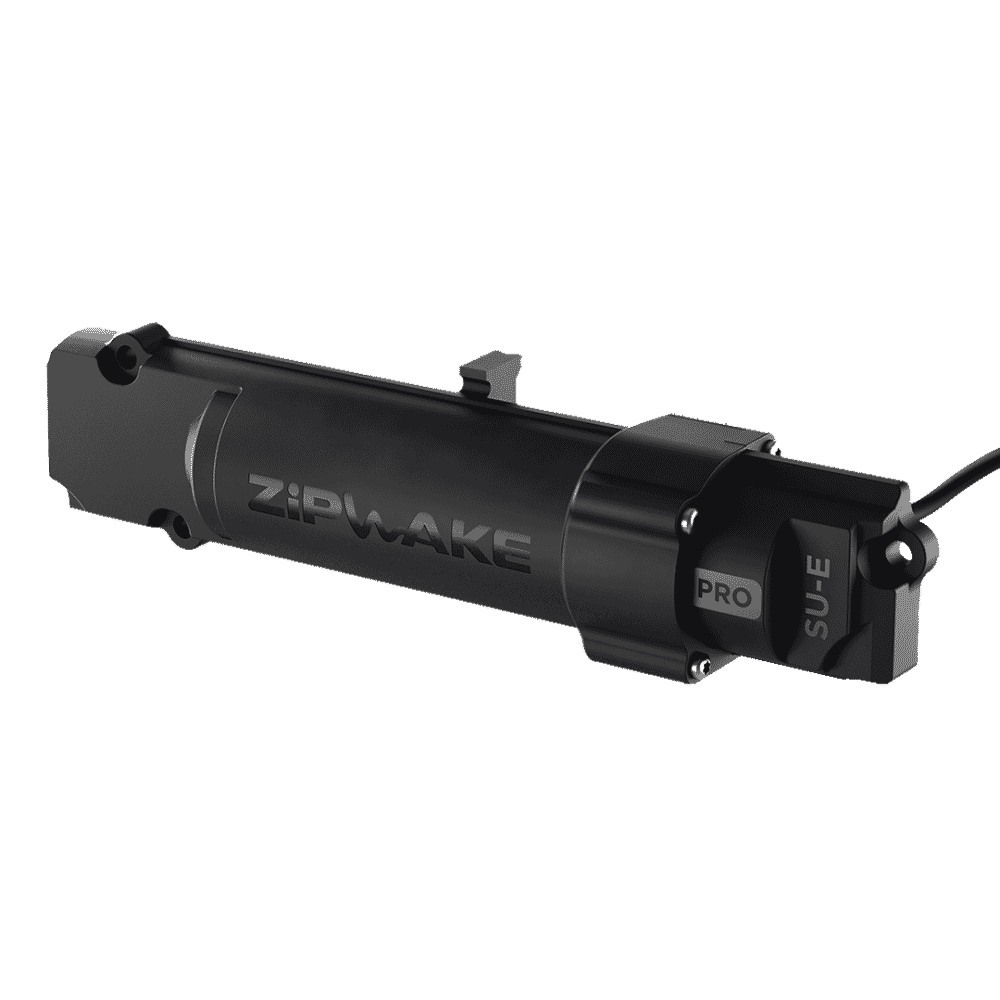

The PRO submersible electrical servo unit fits inside the interceptor, where it drives with precision the mechanism that provides linear motion to the interceptor blades.
SU-400E PRO for 400E, 400E Chine, and 400E R1000 Round Interceptors
- Interceptor (PRO Models): IT400-E IT400-E chine and IT400-E round
- Servo motor type: Brushless DC with Hall sensors
- Operating voltage: 36 V DC
- Power consumption: 35 W max
- Operating temperature: 0° to +40°C (+32° to +104°F)
- Storage temperature: -40° to +90°C (-40° to +194°F)
- Waterproof rating: IP68 5 m (16 ft)
- Compliance: CE FCC
- Cable length: 3 m (10 ft) extendable up to 6 m (20 ft)
- Cable material: PUR
- Connector: M12 5-pin circular
- Connector diameter: 14.5 mm (0.57 in)
- Weight: 0.7 kg (1.54 lbs) including cable
The PRO submersible electrical servo unit fits inside the interceptor where it drives with precision the mechanism that provides linear motion to the interceptor blades. For extended service life the servo unit has double shaft seals and a precision-ground shaft in special high-grade stainless steel. The unit is fast-acting durable calibration free and easy to install or replace. It comes with a rugged 3 m cable with a self-sealing thru-hull fitting.
