Zipwake SU-S PRO - Series S Pro Servo Unit with 3m Cable

• Servo motor type: Brushless DC with Hall sensors
• Operating voltage: 36 V DC
• Power consumption: 35 W max
• Operating temperature: 0° to +40°C (+32° to +104°F)
• Storage temperature: -40° to +90°C (-40° to +194°F)
• Waterproof rating: IP68 5 m (16 ft)
• Compliance: CE FCC
• Cable length: 3 m (10 ft) extendable up to 6 m (20 ft)
• Cable material: PUR
• Connector: M12 5-pin circular
• Connector diameter: 14.5 mm (0.57 in)
• Weight: 0.7 kg (1.54 lbs) including cable
• Compatible with all Series S interceptors

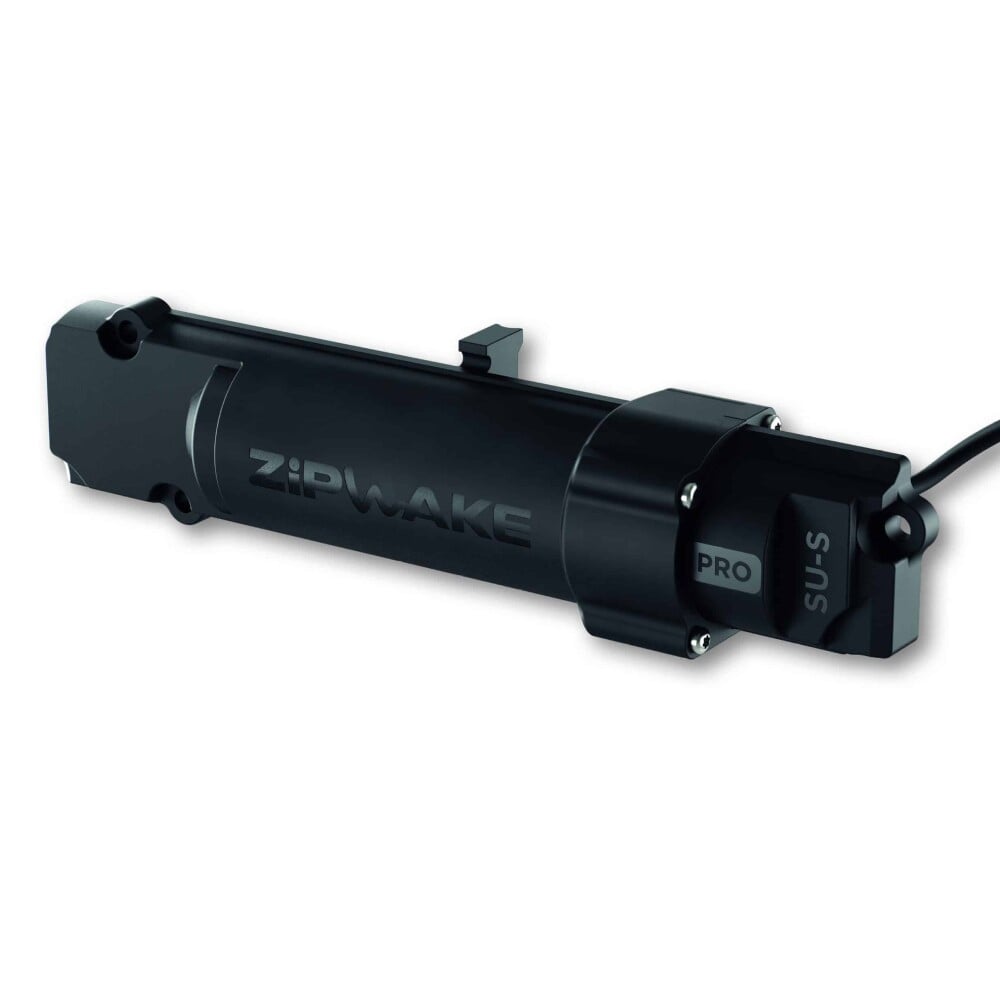

The PRO submersible electrical servo unit fits inside the interceptor where it drives with precision the mechanism that provides linear motion to the interceptor blades. For extended service life the servo unit has double shaft seals and a precision-ground shaft in special high-grade stainless steel. The unit is fast-acting durable calibration free and easy to install or replace. It comes with a rugged 3 m cable with a self-sealing thru-hull fitting.
