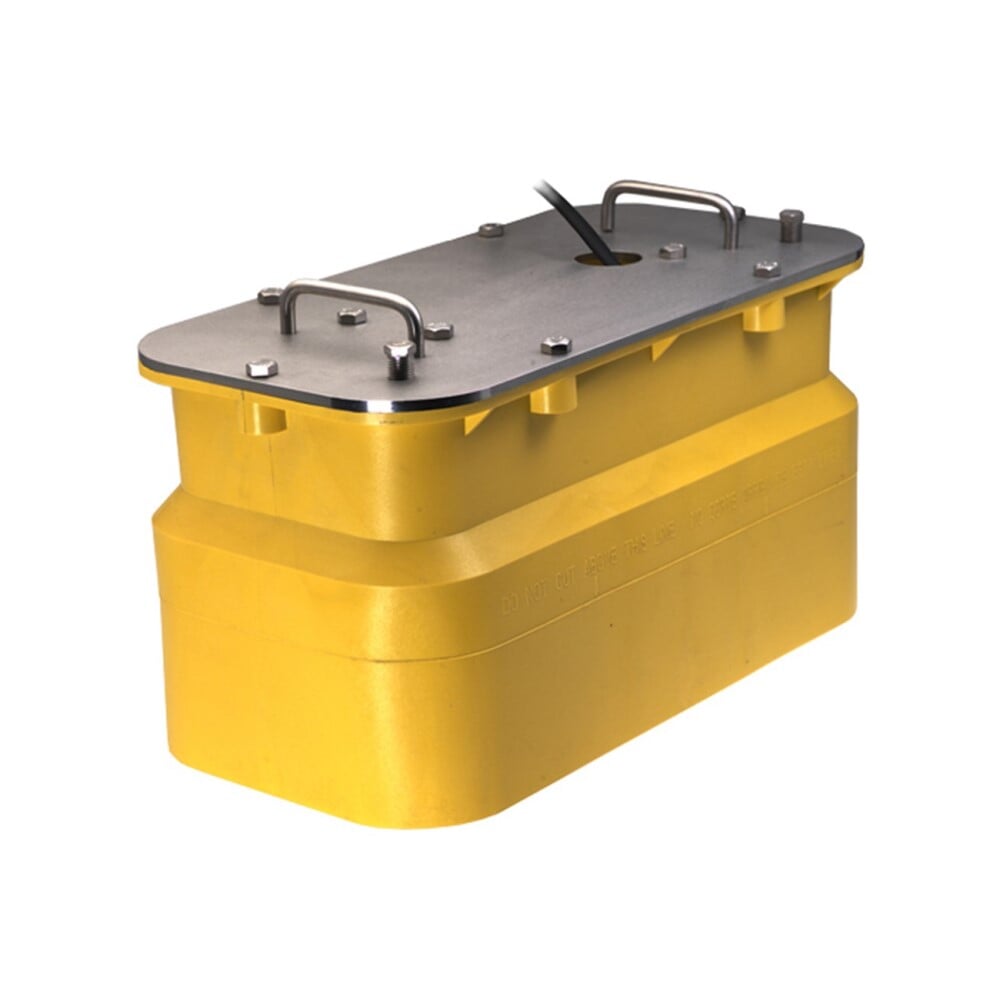

Garmin Airmar R111LH In-hull 2KW Transducer

• Transducer Frequency: CHIRP Low: 38-75 kHz CHIRP High: 130-210 kHz
• Transducer Power: 2 kW
• Transducer Beamwidth: 10° x 19° / 4° - 8°
• Transducer Max Depth: 6 000 ft.
• Cable Length: 49 ft.
• Records: Depth and Temperature
• Connector: None (Bare wires)
• Supported Deadrise Angles: 0° - 25° degree deadrise

This in-hull or pocket mounted transducer uses narrow beams at low/high frequencies to display depth and temperature data to the Garmin Marine Network via a compatible sonar such as the GSD 26.

Designed to allow both traditional and Spread Spectrum scanning this 2 kW barewire plastic transducer has a maximum depth of 8 000 ft; an operating frequency of 38 to 75 kHz and 130 to 210 kHz; and a beamwidth of 10x19 degrees. The in-hull mounts on a 0-25° deadrise angle; the pocket mount is installation dependent.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging the boat.
