Garmin GHP Reactor 40 Steer-by-wire Volvo Penta Corepack & GHC 20

• CCU Dimensions: 91.4 mm diameter (3 19/32")
• Buzzer/Alarm Dimensions: 23 x 25mm
• Autopilot Gateway Dimensions: 130 x 60 x 25mm
• Weight: 159 g
• Temperature range: from -15°C to 55°C
• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
• CCU cable length: 3 m
• NMEA 2000 power input: 9-16V
• NMEA 2000 LEN: 3 (150 mA)

Our Most Responsive Autopilot System on the Water

• Solid-state 9-axis Attitude Heading Reference System (AHRS)
• Minimises heading error, course deviation, rudder movement and power consumption while providing a comfortable ride
• Minimal commissioning and calibration

Bring our Reactor 40 steer-by-wire technology to vessels with Volvo Penta Inboard Performance Systems (IPS) and stern drive joystick systems. With a complete package designed for powerboats and sailing boats, Garmin brings an advanced marine technology to the boating public that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered.

Reactor 40 autopilots are very versatile. Both powerboat and sailing features are available in all corepacks, including heading hold, wind hold, tack/jibe, step turns and more; simply pick the autopilot that’s compatible with your existing steering system.

Solid-state 9-axis AHRS
With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimises heading error, course deviation, rudder movement and power consumption while providing a comfortable ride for all on board.

Reacts to Sea Conditions
This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the Reactor 40 autopilot will keep you on your desired course.

Minimal Commissioning and Calibration
All autopilots require commissioning and calibration — all of them. We know you just want to get on the water, so we made this process as fast and easy as possible. That’s the power of simple.

Full Integration with Garmin Chartplotters
Combined with a compatible Garmin networked chartplotter, you can have full control of Reactor 40 from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of preprogrammed trolling and search procedures. Plus, with a compatible Garmin networked chartplotter and optional BlueChart g3 Vision® charts (sold separately), you gain industry-leading coverage, clarity and detail with updated coastal charts that feature integrated Garmin and Navionics® content.

Connect to Networked Devices
The Reactor 40 autopilot is operated using up to 3 GHC™ helm control units. GHC communicates with the autopilot system via your NMEA 2000® network, so autopilot heading data can be shared easily with other devices. This enables MARPA and chart overlay when connected to a Garmin chartplotter. An optional handheld wireless remote control is also available; however, for the highest level of convenience, control your Reactor autopilot using a compatible quatix® or quatix 5 marine multisport smartwatch.

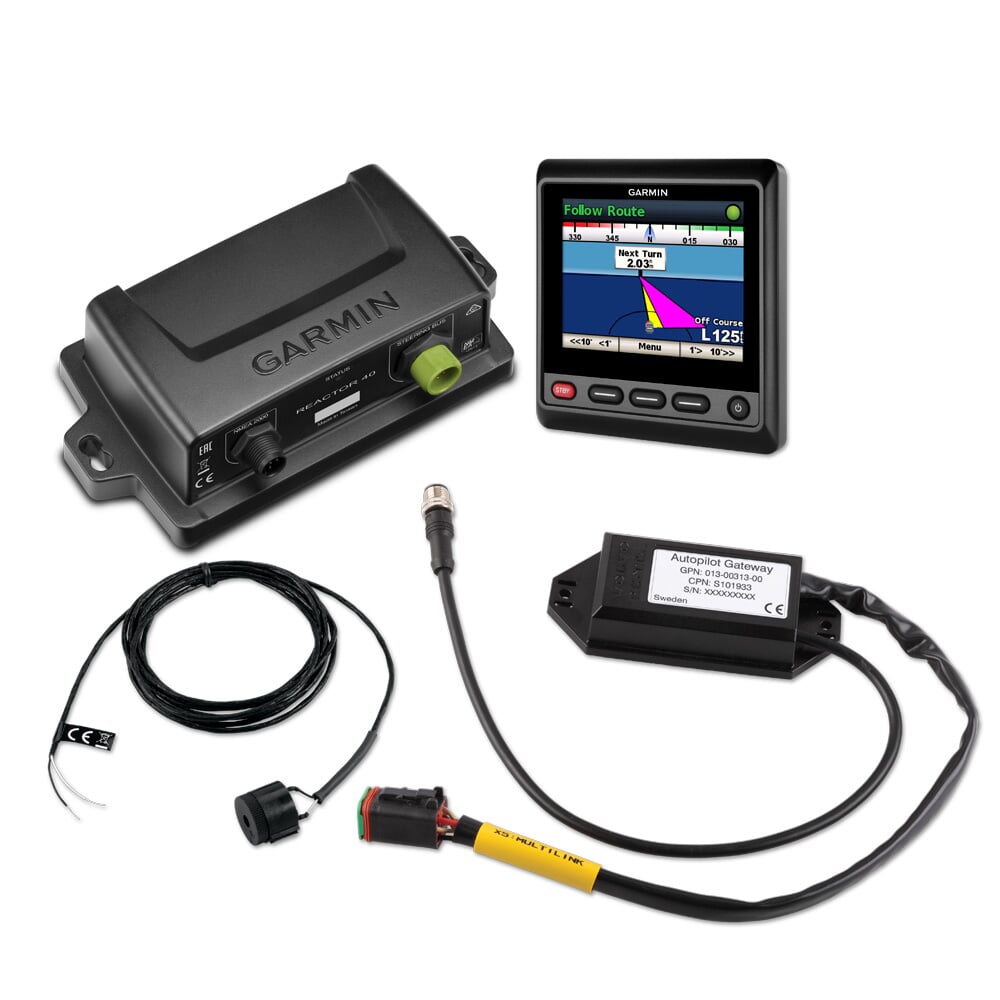

In The Box

• Reactor 40 CCU (Course Computer Unit)
• GHC™ 20 helm control display
• Volvo IPS Gateway
• Interconnect cable
• Buzzer
• NMEA 2000® drop cables (2 metres)
• NMEA 2000 power cable
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation
