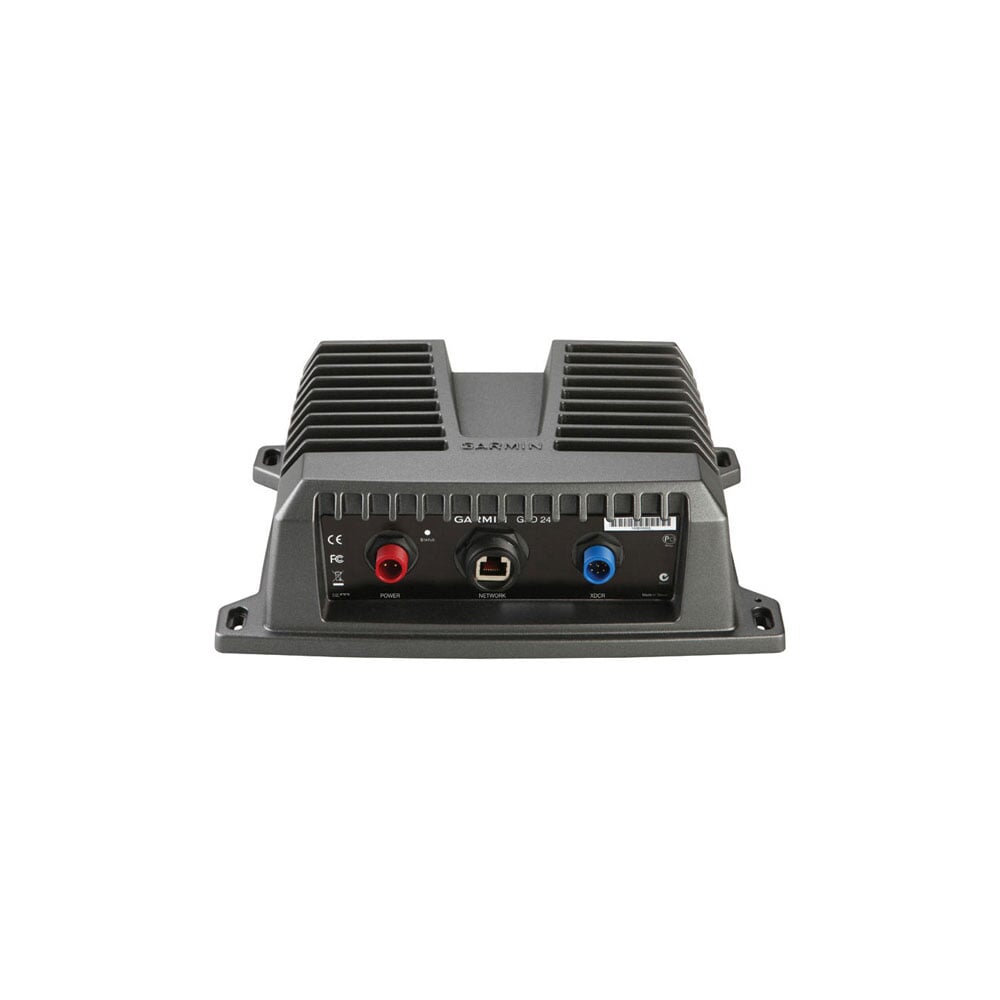

Garmin GSD 24 Advanced Sonar Module
Estimated Delivery 7 - 14 days
Free mainland UK delivery!
Size (LxWxH): 20.4 × 28.4 × 8.1 cm / Weight: 2.4 kg.
Material: Fully gasketed, aluminium and steel housing.
Waterproof (IPX7).
Sounder power: 25-2,000 W rms (depending on transducer).
Frequency: 50/200 KHZ .
Depth: Up to 5,000 ft. (1,524 m).
Data output: Garmin Marine Network.
The GSD 24 features a vastly improved digital sonar design for superior target definition and deep-water performance.
Get the Whole Picture - With up to 2,000 Watts of transmit power and a high-dynamic range receiver, the GSD 24 brings high-definition imaging to your compatible Garmin chartplotter. The system is dual frequency (50/200 KHZ ) capable and offers selectable transmit power (600 W, 1 kW and 2 kW, depending on transducer) for pin-point accuracy at depths of up to 5,000 ft. (1,500 m). So whether you’re out sport fishing or just keeping an eye on hazardous terrain and reef structures beneath your boat, you’ll see a clearer picture with enhanced separation of images and deeper bottom detection.
Plug and Play - Thanks to the easy connectivity of the Garmin Marine Network, installation of the GSD 24 is a snap. Once connected, your sonar data will be shared on any compatible chartplotter on the network. Plus, the network's high-speed connections ensure that you get ultra-fast screen updates with minimal delay.
-
