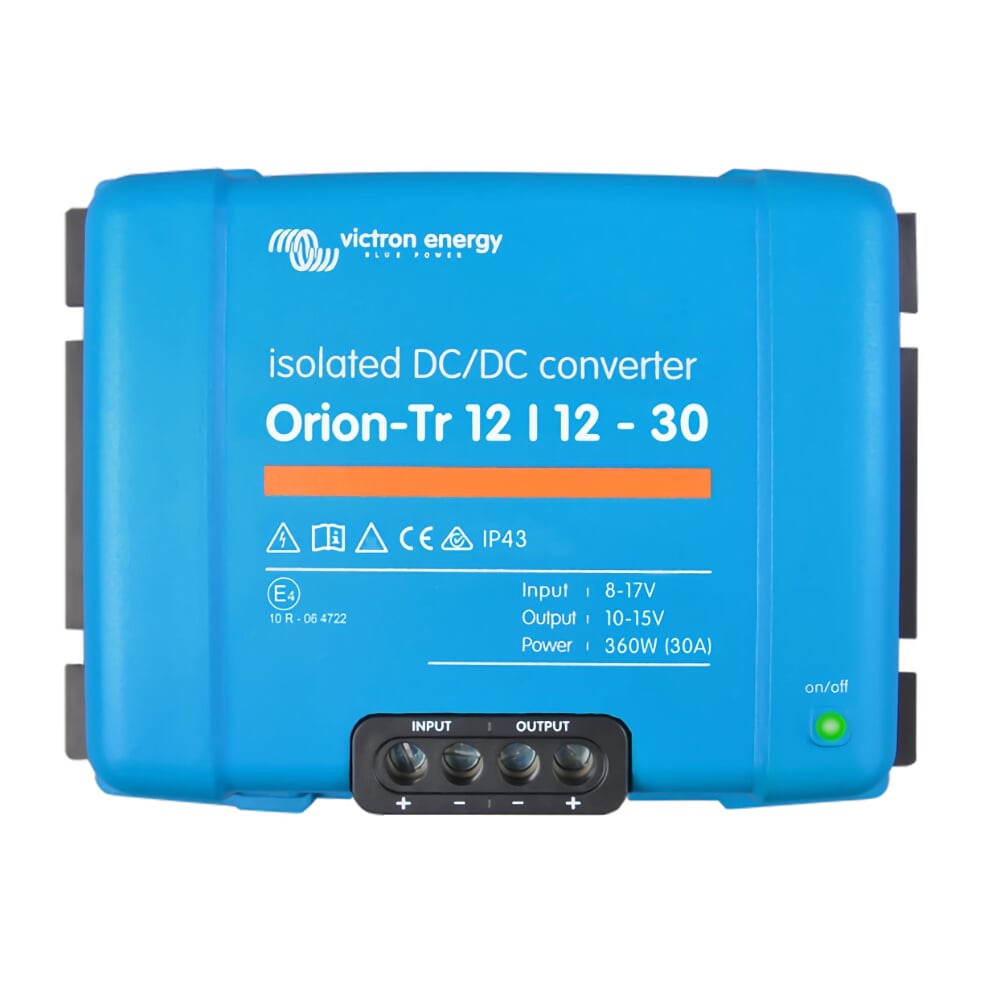

Victron Orion-Tr 12/12-30A (360W) Isolated DC-DC Converter

• Voltage: 12/12V
• Cont. Output Current: 30A
• Protection Category: IP43
• Efficiency: 87%
• Bluetooth Enabled: No
• Dimensions: 130 x 186 x 80mm
• Weight: 1.8Kg

Remote on-off

The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger

For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals

No special tools needed for installation.

Input fuse

On 12V and 24V input models only.
