JL Audio Colour LCD Wired Remote Controller for MediaMaster Stereos

• Dimensions: 95 x 118 x 93mm (3.74" x 4.65" x 3.67")
• Dust/Water Rating (when properly installed): IP66
• Operating temperature range: -20°C to +70°C (-4°F to +158°F)
• NMEA 2000 LEN: 4 (200 mA)
• Display size: 71mm (2.8")
• Display type: color TFT LCD backlit
• Display resolution: 320 x 240
• Multi-language interface: English
• Software updates: USB
• Supported sources: Derived from host source unit
• Supported audio formats (USB): Derived from host source unit
• NMEA 2000 ports:1 (micro-C connector)
• USB 2.0 ports: 1 (software update only)

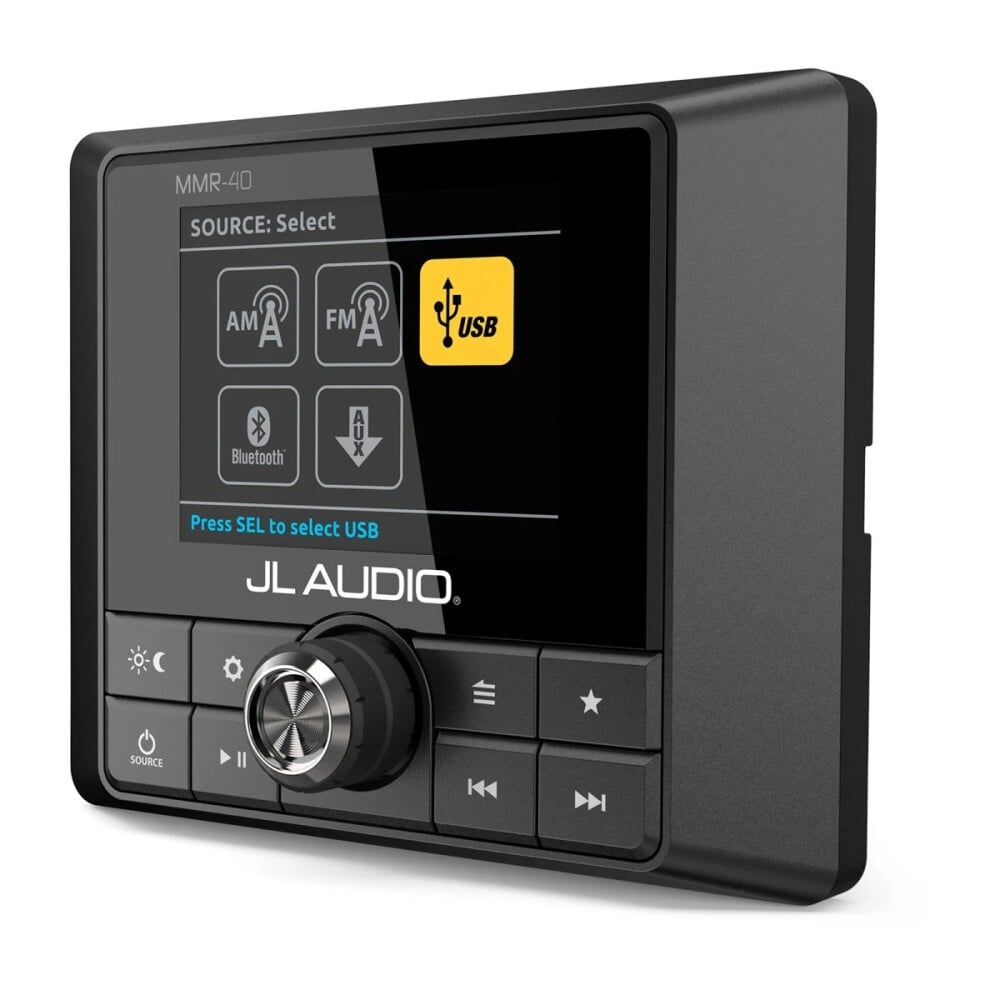

The MMR-40 is a NMEA 2000 Network Controller engineered to add full-function auxiliary control to MediaMaster source units. Outfitted with a NMEA 2000 Micro-C connector the MMR-40 connects to a host MediaMaster source unit in two ways:

1. Direct interface with a vessel's NMEA 2000 network using applicable NMEA 2000 cables and connectors (not included).

2. Direct connection of one MMR-40 with one host MediaMaster source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated stand-alone NMEA 2000 network.

Once connected the MMR-40 automatically recognises the host MediaMaster source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-colour 2.8-inch LCD display resulting in a complete MediaMaster user experience.

The MMR-40 is equipped with independent display theme and lighting controls for maximum mounting location flexibility regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications its weatherproof (IP66 rated) chassis is built to withstand the harshest environments.

In The Box

• Wired remote controller
• Mounting hardware
• Sun cover
• Documentation
