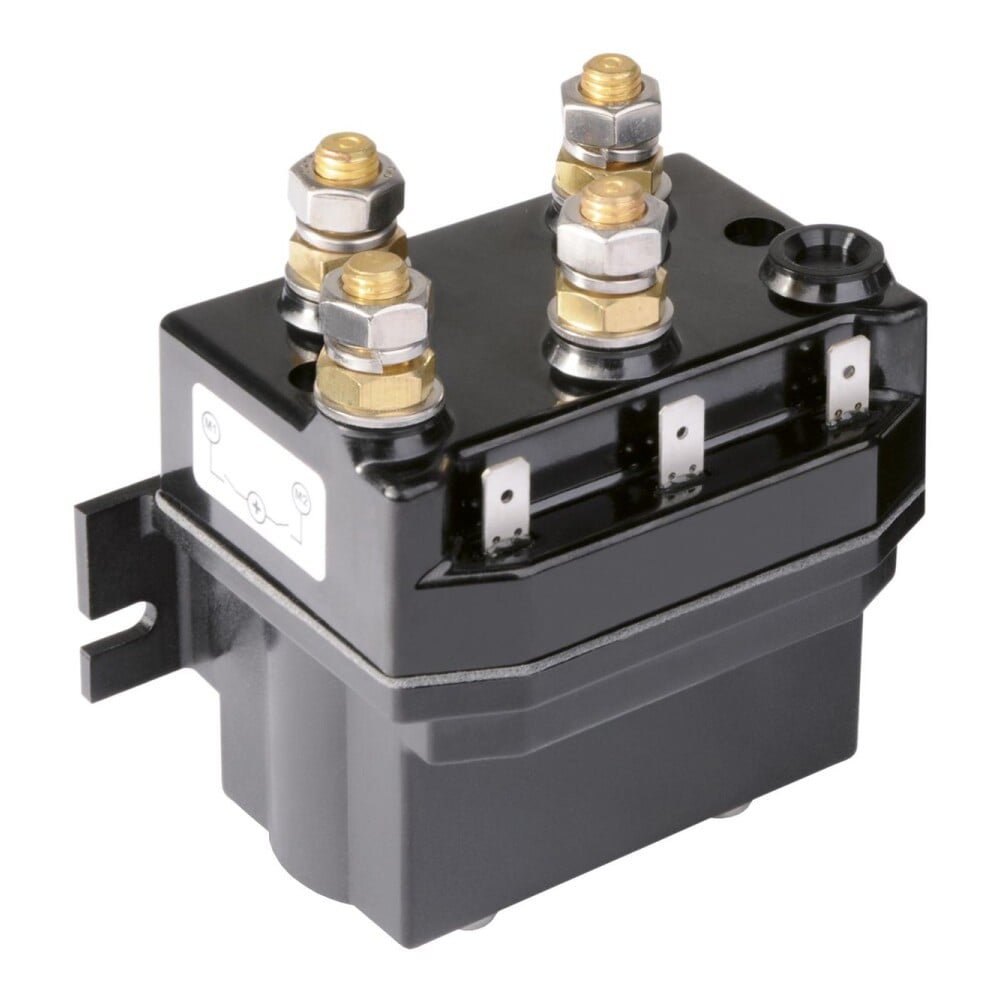

Quick T6415-12 Reversing Contactor Unit - 12V
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
MPN
FTT641512000B00
£123.42
£102.85
The contactor and reversing contactor units T6315 or T6415 are able to operate electric motors for windlasses and capstans. Thanks to their external connections, they are very easy to install.
- Maximum power of the windlass/capstan motor: 2500W
- Max contact voltage: 48 Vdc
- Interruption capacity: 800 A @ 48 Vdc
- Working intermittent current (50% of work cycle) (Ie): 150A
- Coil rated voltage: 12 Vdc
- Recommended fuse: 2.5 A Fast
- Protection: IP66
- Weight: 980g
The contactor and reversing contactor units T6315 or T6415 are able to operate electric motors for windlasses and capstans. Thanks to their external connections they are very easy to install.
