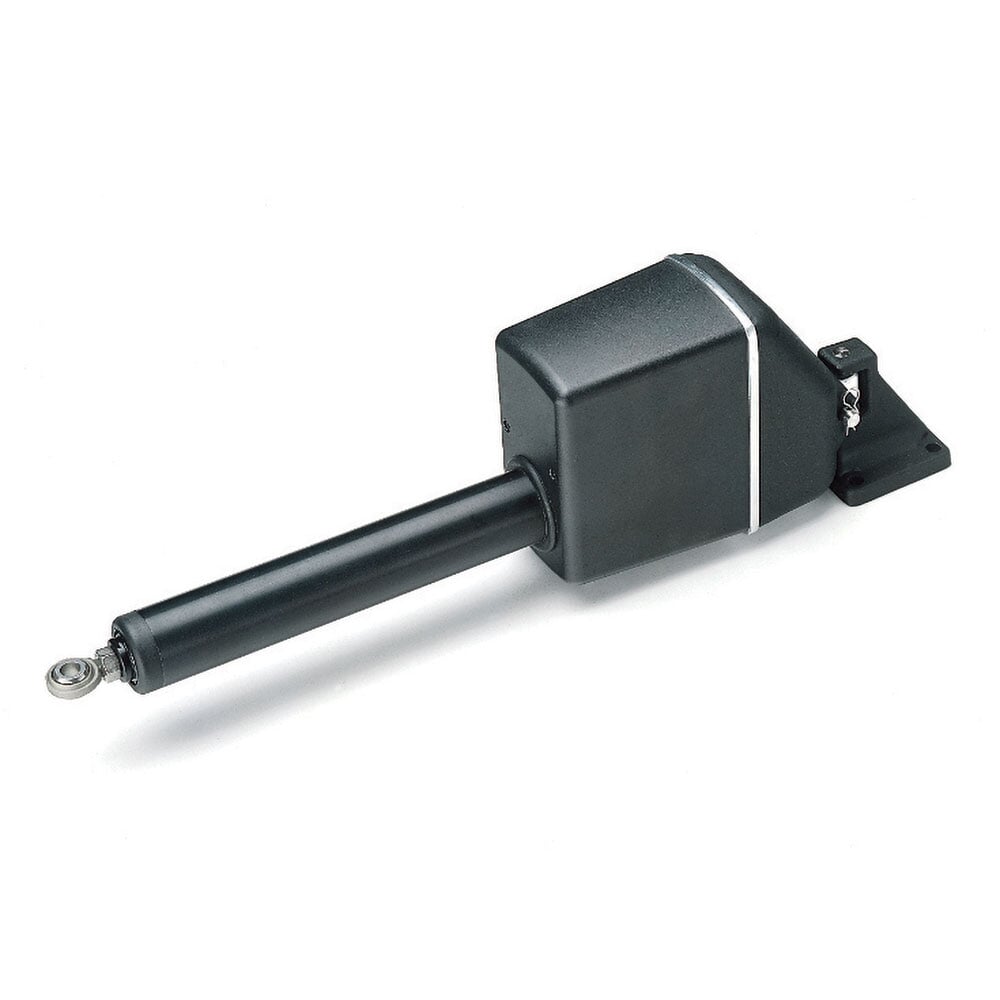

Raymarine Type 1/12v Short Shaft Linear Drive
Estimated Delivery 7 - 14 days
Free mainland UK delivery!
Raymarine Mechanical Linear Drives.
Our most commonly used drive types for sailing vessels. Raymarine mechanical linear drives provide powerful thrust, fast hard-over times and quiet operation. Mounted below decks, the linear drive moves the rudder directly by pushing the tiller arm or a rudder quadrant.
A linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering manufacturer may be required. Must be able to back-drive steering system from the rudder.
Maximum boat displacement: 11,000 kg (24,000 lb).
Peak thrust: 295 kg (650 lb).
Maximum stroke: 300 mm (12").
Hard-over to hard-over times: 11 seconds.
Maximum rudder torque: 735 nm (6,500 lb.in).
Power consumption: 18-36 W.
Corepack used: SPX-10.
-
