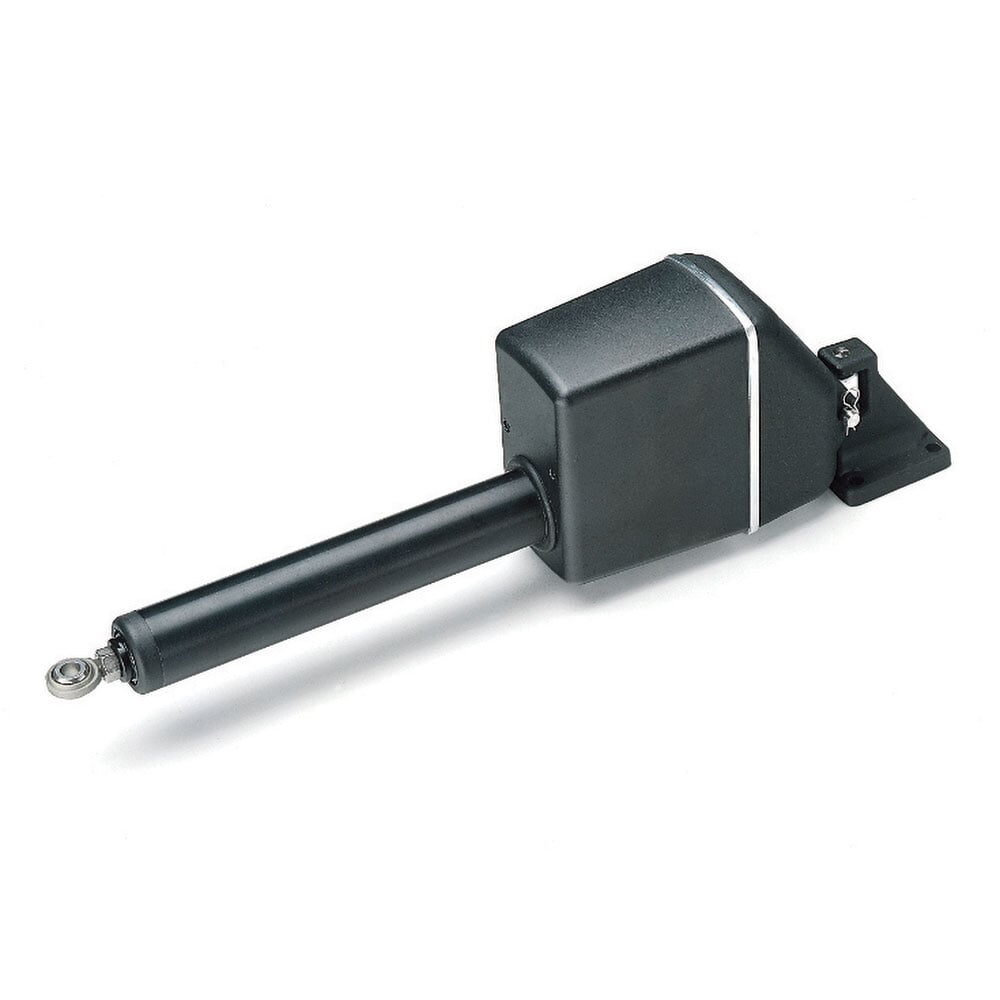

Raymarine Type 2/12v Short Shaft Linear Drive
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
MPN
M81131
RRP £2,245.00
£1,889.44
£1,574.53
Free mainland UK delivery!
Maximum boat displacement: 15,000 kg (33,000 lb).
Peak thrust: 480 kg (1,050 lb).
Maximum stroke: 300 mm (12").
Hard-over to hard-over times: 11 seconds.
Maximum rudder torque: 1,190 nm (10,500 lb.in).
Power consumption: 48-72 W.
Corepack used: SPX-30.
Inboard Drive Unit - Type 2 Linear (Short Stroke) 12v.
Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust fast hard over times and quiet operation.
Max. Displ.Hyd.Ram. Cap : 15000Kg.
Compatible Corepack : S3 & S3G.
