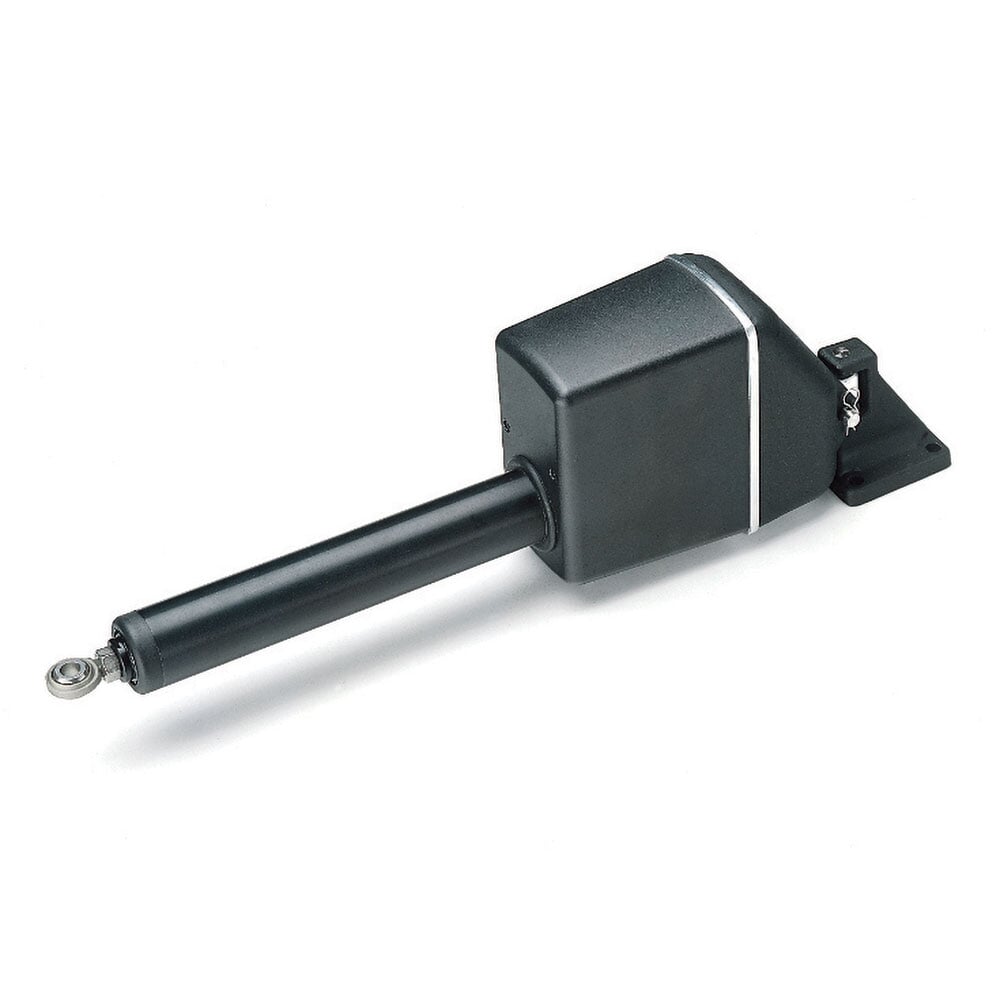

Raymarine Type 2/24v Long Shaft Linear Drive
£2,110.49
£1,758.74
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
MPN
M81134
Free mainland UK delivery!
Maximum boat displacement: 20,000 kg (44,000 lb).
Peak thrust: 480 kg (1,050 lb).
Maximum stroke: 400 mm (16").
Hard-over to hard-over times: 14 seconds.
Maximum rudder torque: 1,660 nm (14,700 lb.in).
Power consumption: 48-72 W.
Corepack used: SPX-30.
Inboard Drive Unit - Type 2 Linear (Long Stroke) 24v.
Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust, fast hard over times and quiet operation.
Max. Displ.Hyd.Ram. Cap : 20000Kg.
Compatible Corepack : S3 & S3G.
