Raymarine Type 3 Hydraulic Linear Drive
£3,685.49
£3,071.24
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
MPN
M81202
Free mainland UK delivery!

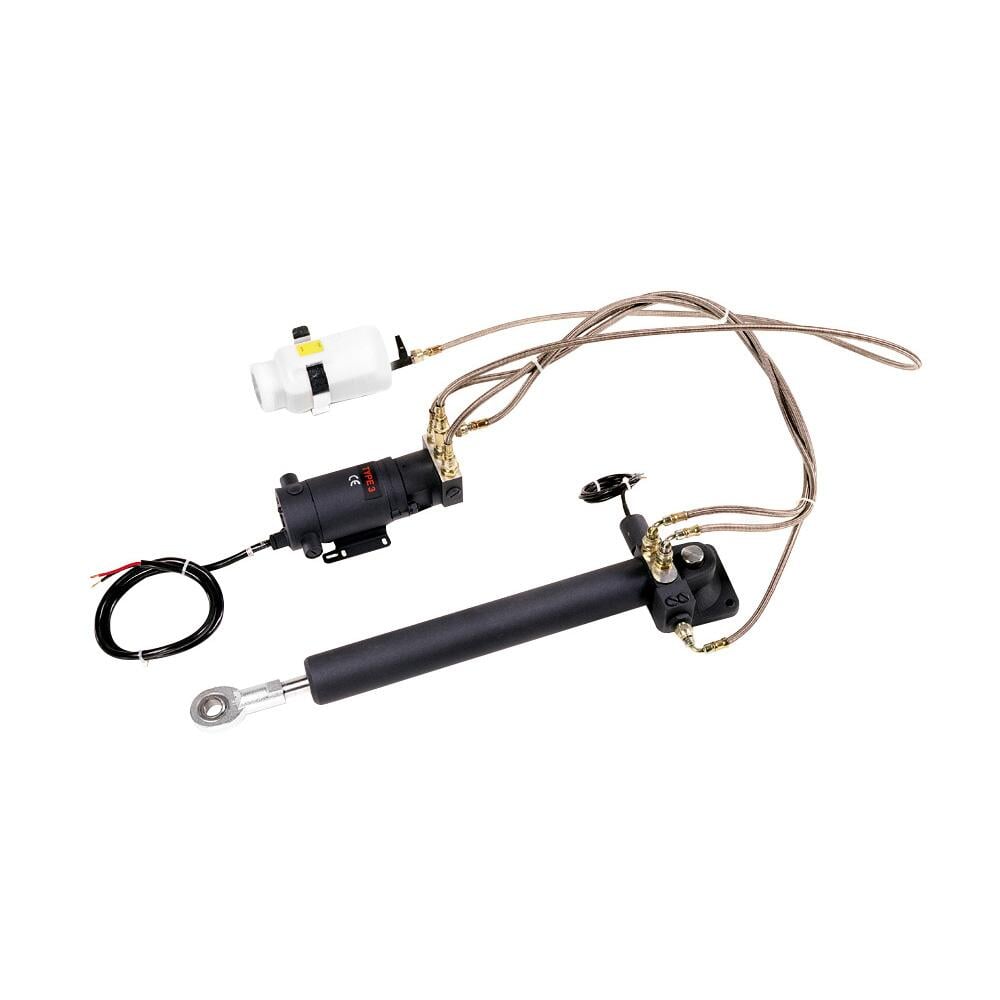

Designed for larger mechanically steered vessels over 20,000kg, our hydraulic linear drives are self-contained hydraulic steering systems consisting of a reversing pump, reservoir and hydraulic ram.
A hydraulic linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering system manufacturer may be required. Must be able to back drive steering system for the rudder.
- Helm speed Hardover to hardover time: 10 seconds
- Maximum rudder torque: 3200Nm
- Maximum stroke: 300mm
- Maximum vessel displacement 77,000lb (35,000 kg) .
- Peak thrust: 1200kg
- Corepack used: ACU-400
