Solar Technology 150W Rigid MHD Solar Panel ABS Mounts & 10A PWM
Estimated Delivery 7 - 14 days
Free mainland UK delivery!

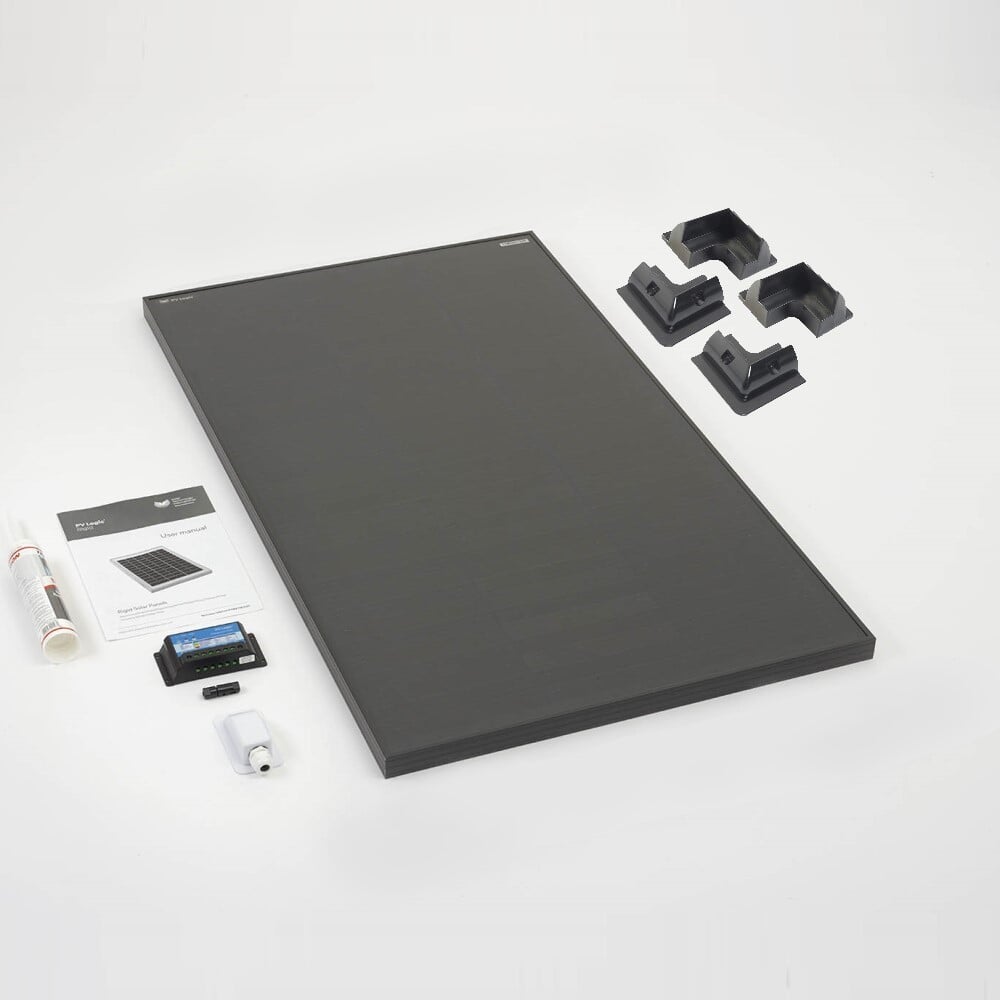

150W Rigid Solar Panel Roof & Deck Top Kit Comprising of:
- 150W Rigid Solar Panel
- 4 x ABS Corner Mounts with fixings
- 10A Dual Battery PWM Charge Controller
- 4m Cable, Connectors, Gland & Fuse
- Tube of bonding agent
- Power: 150W
- Size: 1150 x 670 x 35mm
- Weight: 7.5Kg
- Amp hours per day: 47.88A
- Charge controller: Includes 10A Dual Battery PWM Charge Controller
- Vmp: 18.8V
- Voc: 22.2V
- Isc: 8.46A
- Includes ABS Corner Mounts
The 150w MHD rigid solar panel features superior shingled monocrystalline solar cells to deliver greater efficiency in a smaller footprint and lighter weight compared to conventional polycrystalline solar panels.
The sturdy anodized aluminium frame complements the solar cells to create a smart all-black panel with an IP67 waterproof rating. MHD panels are perfect for use on a motorhome, caravan or campervan roof as well as other off-grid power applications. They are supplied with a 10-year module warranty.
Includes Aero brackets
The mounts can be safely bonded to the surface removing the need to drill holes in your caravan, motorhome or boat. The solar panel then simply slides into the groves and is secured with the endcaps screwing into the side of the panel.
Includes 10A Dual Battery PWM Charge Controller
This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems.
The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.
- Reverse current protection.
- Unique dual battery charging function.
- Efficient Series PWM charging, increases battery lifetime and improves solar system performance.
- 12/24V automatic recognition.
- Overload protection
- Open circuit protection
- Lightning surge protection
- Deep discharge protection
- Charge current protection up to 10A
-
