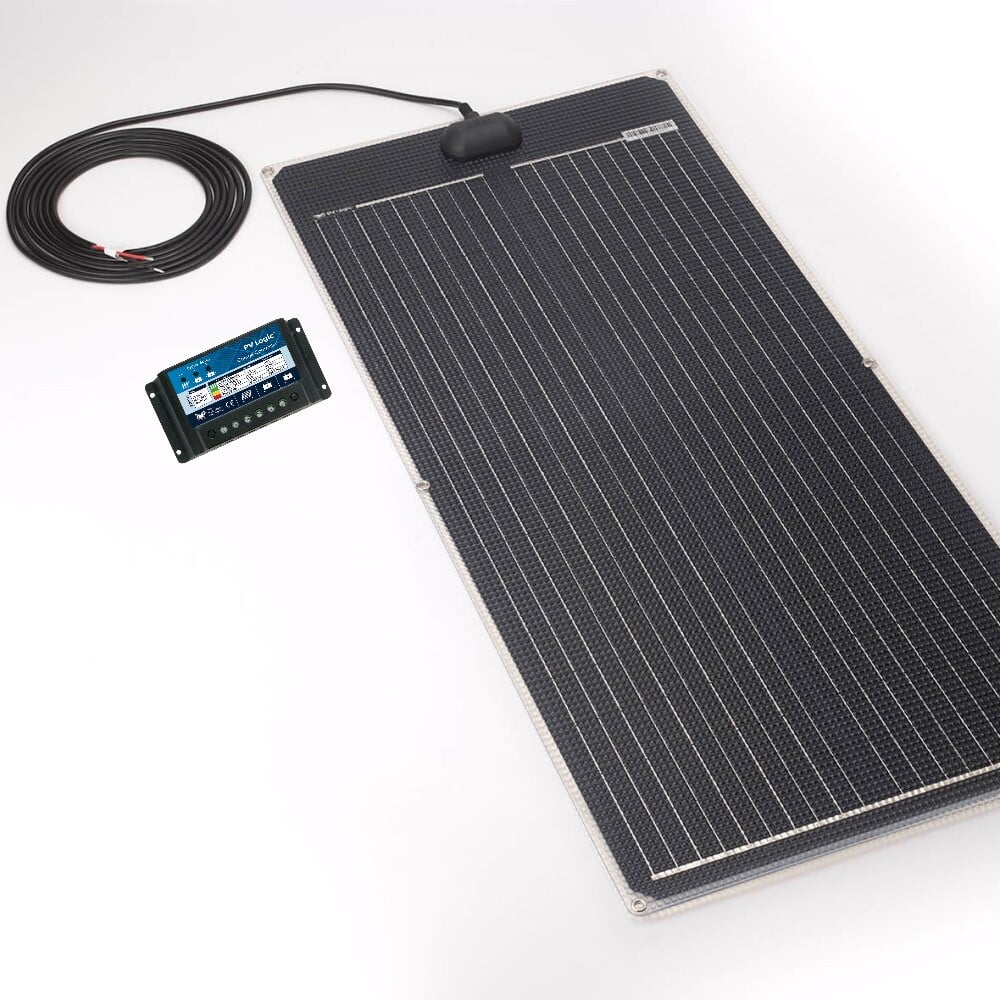

Solar Technology 60W ETFE Flexi Solar Panel & 10A PWM

• Power: 60W
• Size: 395 x 880 x 4mm
• Weight: 2.8Kg
• Amp hours per day: 19.8A
• Charge controller: Includes 10A Dual Battery PWM Charge Controller.
• Vmp: 18.2V
• Voc: 21.3V
• Isc: 3.46A

The ETFE layers give the 60w flexi panel extra resilience in really tough conditions. ETFE has a memory effect or self-healing capacity in the event the panel comes into contact with branches etc, thus ensuring any slight abrasions are ‘healed’ within a few hours. The flexi range can even be walked on with soft deck shoes! During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface, particularly useful if the panel is fitted to a boat deck.

Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress.

There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

Easy fix

The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Simson ISR 70-03.

Installation method

Please only use the glue pattern below (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

Includes 10A Dual Battery PWM Charge Controller

This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems.

The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

• Reverse current protection.
• Unique dual battery charging function.
• Efficient Series PWM charging, increases battery lifetime and improves solar system performance.
• 12/24V automatic recognition.
• Overload protection
• Open circuit protection
• Lightning surge protection
• Deep discharge protection
• Charge current protection up to 10A
