Solar Technology 60W Rigid Solar Panel Aero Mounts & 15A MPPT

• Power: 60W
• Size: 670 x 640 x 35mm
• Weight: 4.5Kg
• Amp hours per day: 20.94A
• Charge controller: Includes 15A Dual Battery MPPT Charge Controller
• Vmp: 17.5V
• Voc: 22V
• Isc: 3.97A
• Includes premium aero brackets

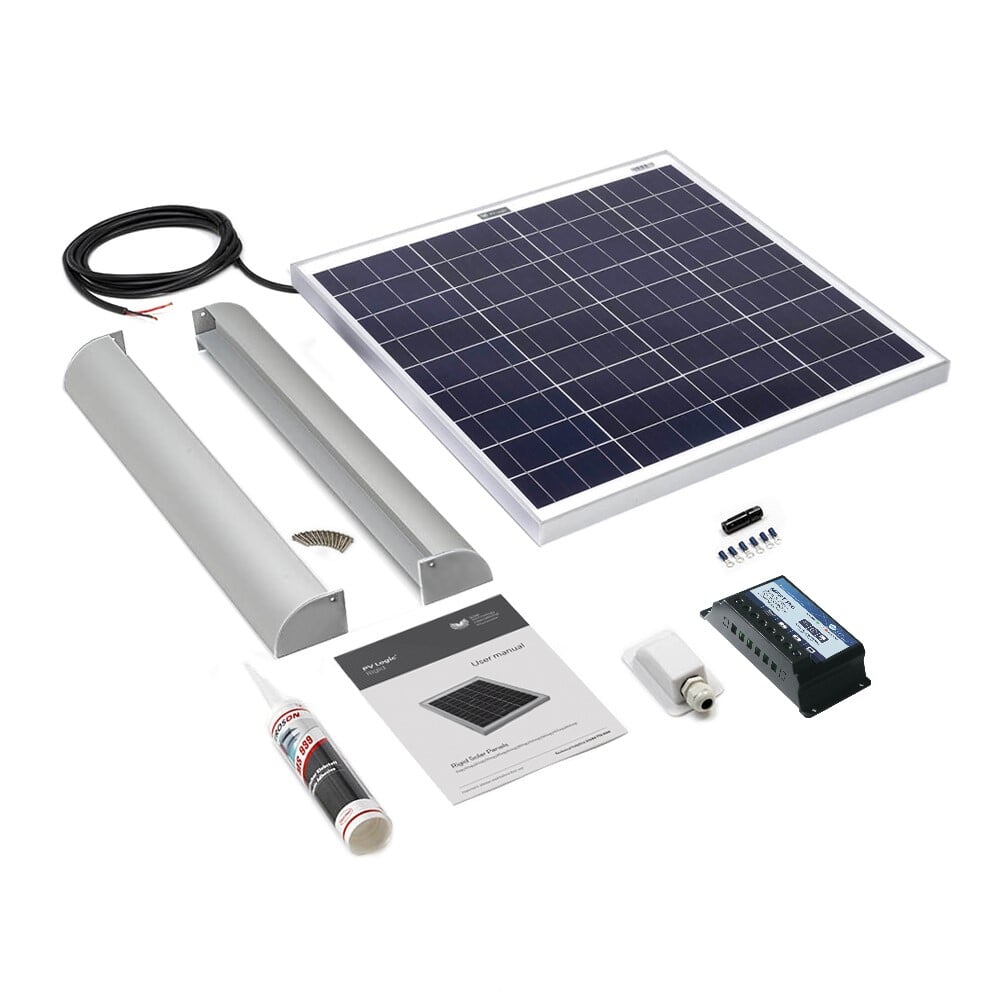

This 60w PV Logic solar panel roof and deck top kit enables the solar panel to be professionally fitted to the roof of a caravan, motorhome, yacht or narrow boat. The 60w PV Logic solar panel is often a standard fit for caravan and campervan manufacturers alike. Delivering up to 390wh per day, the panel benefits from a 10 year product warranty and is suitable for powering most DC and some AC appliances via a separately purchased inverter. This roof and deck top kit is supplied with a 60w PV Logic solar panel, our premium aero brackets, 10Ah dual battery charge controller, 4m cable, connectors, fuse, bonding agent, cable feed gland and detailed installation instructions.

Developed to meet higher energy demands, the 60W rigid solar panel is suitable for powering higher power consumption devices including 12V TVs and 240V appliances (when used with an inverter). It also provides a continuous trickle feed maintain and extending the life of any 12V battery. The six layer construction of each panel, delivers performance and strength.

The panel includes bypass diodes to minimise the effect of shadows and is supplied with all a 5m cable, connectors and detailed installation instructions for permanent fitting. This panel can be installed using standard aluminium, premium PVU or aero aluminium brackets.

PV Logic rigid solar panels have a 10-year frame integrity warranty and a 20-year cell warranty (cell performance warranty states that at 20 years the cell output will be no less than 80% of new
performance values – i.e. the cell degradation rate will be no greater than 20% in 20 years).

Includes Aero brackets

The mounts can be safely bonded to the surface removing the need to drill holes in your caravan, motorhome or boat. The solar panel then simply slides into the groves and is secured with the endcaps screwing into the side of the panel.

Includes 15A Dual Battery MPPT Charge Controller

The PV Logic MPPT Pro charge controller has been designed to deliver the highest possible power from any 12v or 24v solar panel into a 12v or 24v battery.

The MPPT Pro provides protection for a battery against overcharging for any solar panel or solar array up to 225w and is either an excellent choice for new installations or as an upgrade to an existing solar systems. Whether for leisure (caravan, motorhome, boat), industrial or solar off grid systems the MPPT Pro will more than pay back its cost through the extra power it delivers.

• Reverse current protection.
• Unique dual battery charging function.
• Efficient MPPT charging, increases battery lifetime and improves solar system performance upto 20%.
• 12/24V automatic recognition.
• Overload protection
• Open circuit protection
• Lightning surge protection
• Deep discharge protection
• Charge current protection up to 15A
• Bluetooth with Apple and Android apps available
• Optional Display unit available
