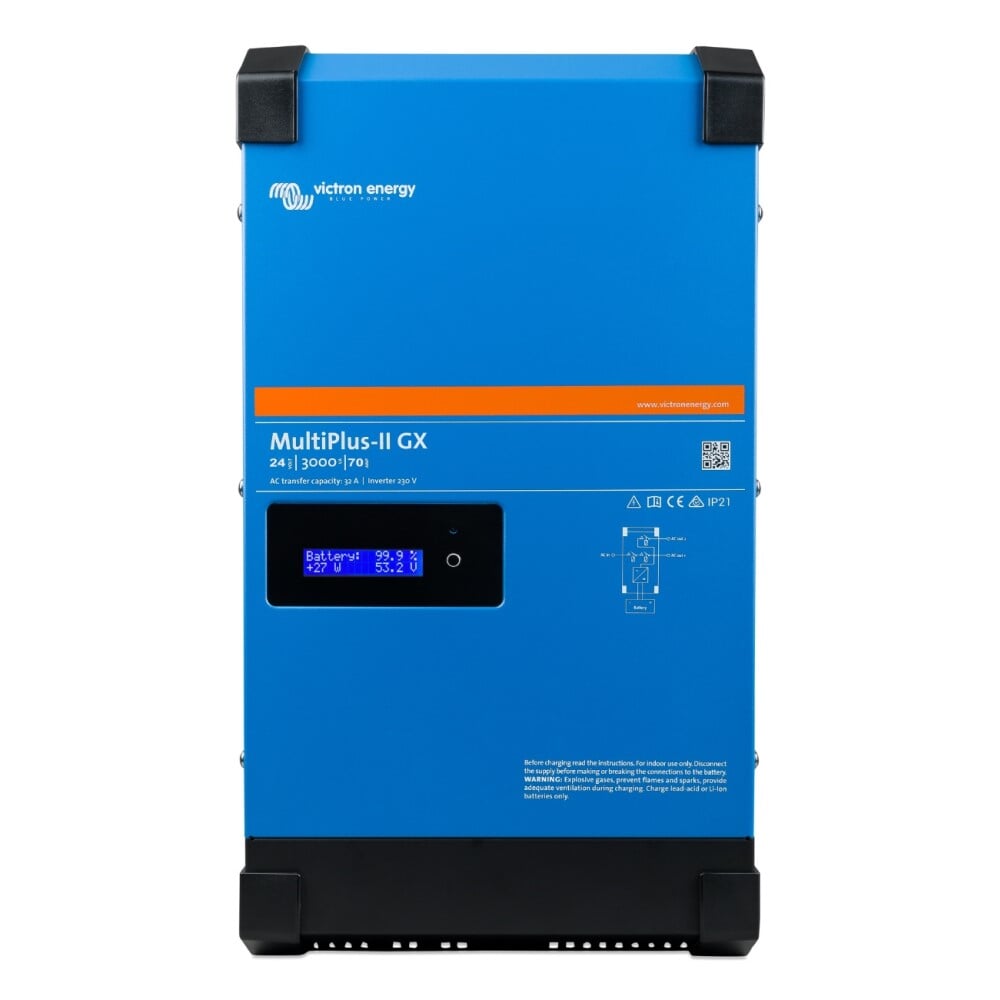

Victron MultiPlus-II 24/3000/70-32 230V GX Inverter Charger

• Voltage: 24V
• Cont. Output Power at 25C: 3000VA
• Peak Power: 5500W
• Output AC Voltage: 230V
• Transfer Switch: 32A
• Max. AC Input Current: 32A
• Max. Battery Charge Current: 70A
• Protection Category: IP22
• Efficiency: 94%
• Bluetooth Compatible: Yes
• Dimensions: 506 x 275 x 147mm
• Weight: 19Kg
• Warranty: 5 Years

An Inverter/Charger with device networking built-in the MultiPlus-II GX communicates with a solar charger batteries and other devices to control a grid-connected off-grid or remote power installation. Capable of parallel operation for increased power output or battery charge-rates the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features such as uninterrupted power supply setting load limits and supplementing limited grid-power availability with battery power can all be controlled straight from your phone or smart device. Remote monitoring is also possible.

Features

A MultiPlus-II with LCD and GX functionality

The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi

The display reads battery inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device

The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
• A USB port.
• A Ethernet port.
• A VE.Direct port.

Applications

The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel and three phase operation

Only one GX unit is needed in case of Parallel and three phase operation.
