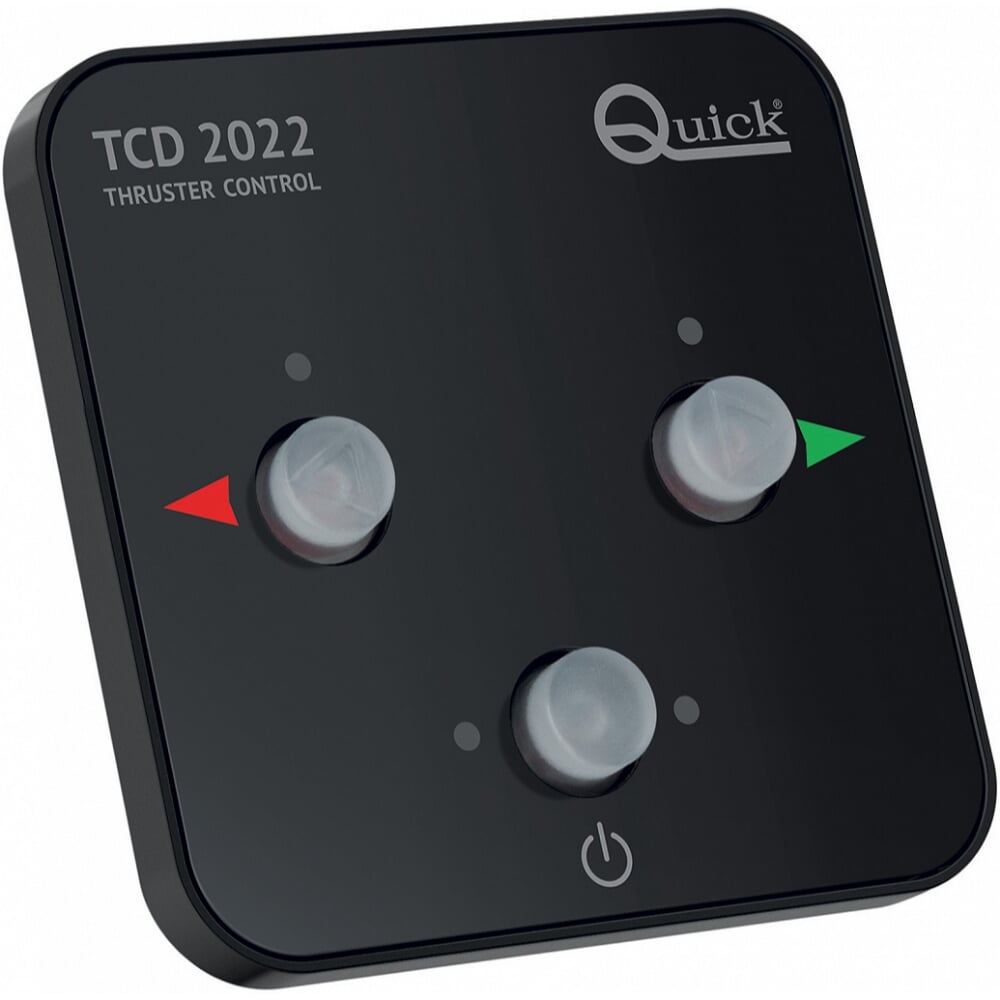

Quick TCD 2022 Push Button On-Off Thruster Control Panel
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
MPN
FNTCD2022000B00
RRP £203.57
£176.63
£147.19
The TCD 2022 is a simple push button control panel for on-off control of BTQ thrusters. Features a simple and intuitive user interface and can be connected in parallel to allow control from multiple helm / flybridge stations.
- Current Capacity: 4A
- Supply Voltage: 9 - 31V DC
- Current absorption at rest: 10mA
- Operating Temperature: -20°C - 70°C
- Protection Rating: IP66
- EMC Class: EN60945 - FCC Title 47 Part 15 subpart B Class B
- Weight: 80g (0.17 lb)
The TCD 2022 is a simple push button control panel for on-off control of BTQ thrusters. Features a simple and intuitive user interface and can be connected in parallel to allow control from multiple helm / flybridge stations. Gives an acoustic signal for operation (that can be deactivated) and is protected against reversed polarity and output short circuit.
